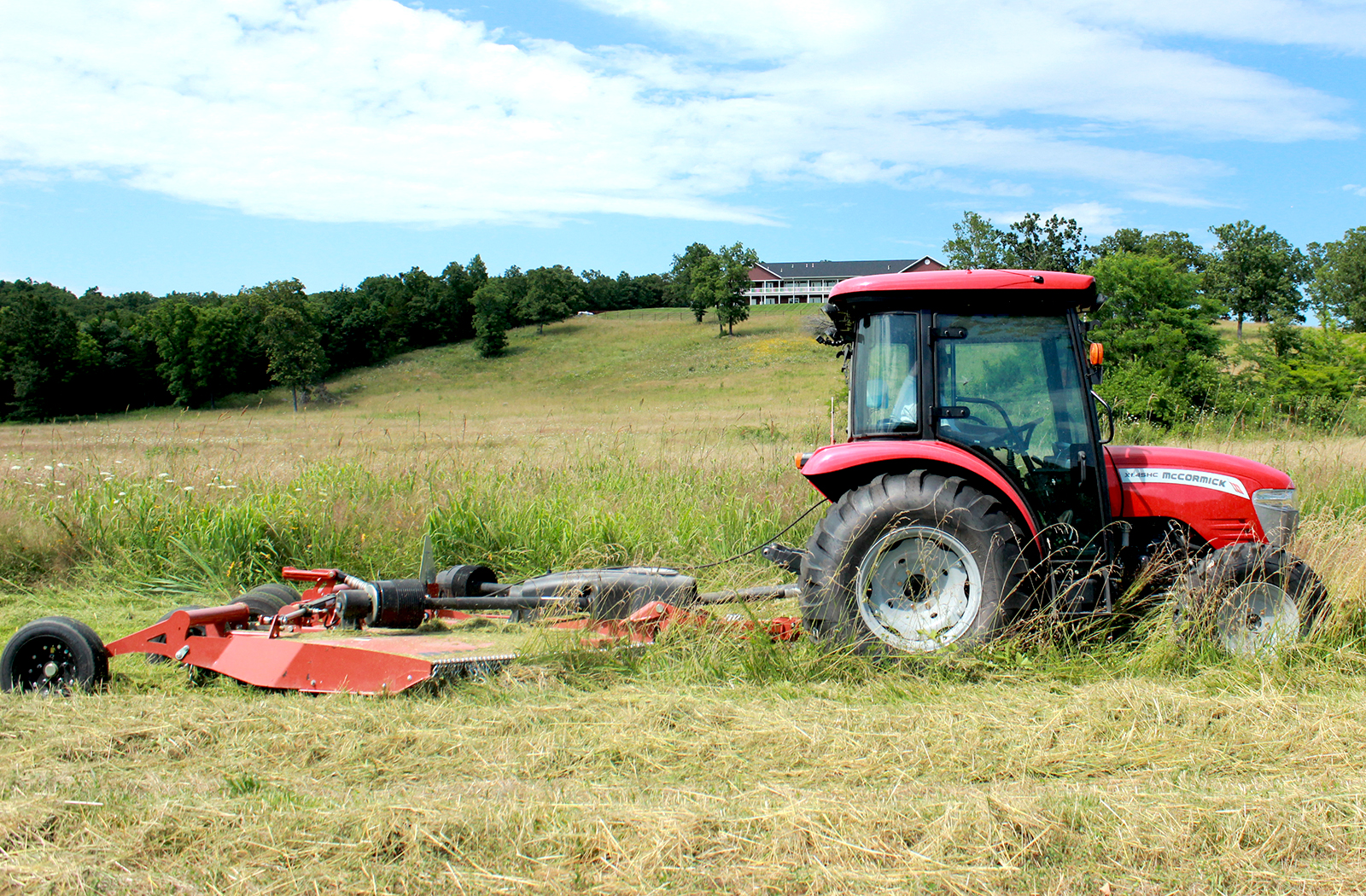

TS10 Flex-Wing

Show Brush Who's Boss

Don't let the small size of the TS10 deceive you - it's packing some seriously heavy-duty guts. With a 120" cutting width and 1/2" x 3" blades, the TS10 is prepared to take on brush up to a full 2" in diameter.

The Flex-Wing deck design lets you cut on rolling terrain without having to make multiple passes - something fixed-deck cutters can only dream of doing. And with a transport width of only 93", the TS10 can get practically anywhere: through gates as narrow as 8', easily into storage, and into the bed of your pickup truck.

Turns out that bigger isn't always better.

Features and Benefits

  • Fits through gates as narrow as 8'
  • 2" cutting capacity
  • Walterscheid EZ-Lock collar makes hookup easy
  • Replaceable skid shoes
  • Average mowing time of 4 MPH
  • Heavy-duty turn buckles

Who Should Buy

  • Compact Tractor Owners
  • Homeowners
  • Roadside Maintenance
  • Upkeep of Recreational Areas

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

1

Year

Limited Gearbox Warranty

10

Years

* 5 Year Commercial

Limited Driveline Warranty

2

Years

Compare Models

TS10 - 10' Flex-Wing

The TS10' is our latest and greatest and the baby of the Flex-Wing Family. Keeping the transport width at 93" makes this the perfect option for getting in to maintain those pastures. It has a 2" cut capacity and packs a pretty good punch for those compact tractors.

TS12 - 12' Flex-Wing

The TS12 is a 12' Flex-Wing Rotary Cutter with a 1 1/2" cut capacity. Suitable for any tractor between 35 - 60 horsepower. Other than the minor difference in cut capacity, the only difference between the TS12 and TS10 is fitting through those 8' gates to mow.

Specifications

TS10
Cutting Width120''
Transport Width93''
Transport Height68''
Overall Width126''
Overall Length162''
Cutting Height *1'' - 15''
Height Adjustment3 1/2'' x 8'' Hyd Cylinder
Jack StandStd
HitchPull Type, Parallel Clevis
Blade CarrierInfinity - Steel
Blades1/2'' x 3'' High Lift
Blade Overlap6''
Tractor PTO HP Range25 - 60
Gearbox Rating - Power Divider **160 HP
Gearbox Rating - Center & Wing **65 HP
Gearbox Oil (85W-140)Factory Filled Lucas Oil
Output Shaft Diameter1 9/16''
Blade Tip Speed - Center 540 RPM13,028
Blade Tip Speed - Wing 540 RPM13,680
Cutting Capacity2''
Driveline ProtectionSlip Clutch
Driveline ASABE - MainCAT 4 CV
Driveline ASABE - WingCAT 3 SC
Deck Thickness12 Ga
Side Skirt1/4'' x 10''
Tires & Wheels (4 or 6)Laminated, Foam Filled Used Airplane, Rhino Trax Foam Filled
Wing Lift2'' x 14'' Hyd Cylinder
Wing Flex (Degrees)90° Up / 22° Dn
Safety Tow ChainStd
Safety DeflectorsRubber Deflectors or Single Chain Guards
Tongue Weight720 lbs
Weight (Approx)2,190 lbs
Manuals

TS10 Manuals

* Cutting Height dependent on Tire Size.
** Gearbox ratings based on field performance.
TS10 is NOT intended for Commercial or Government use.
