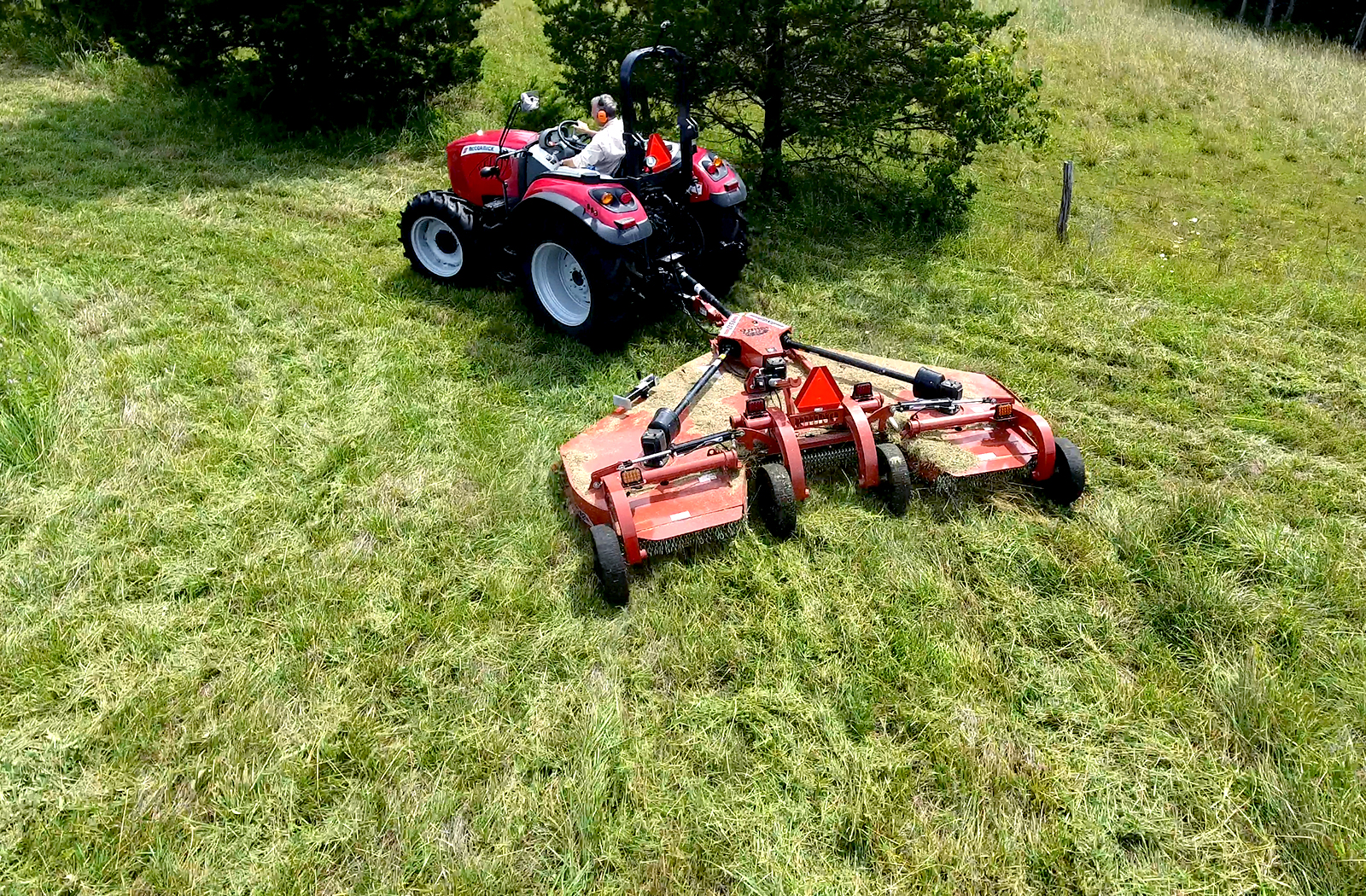

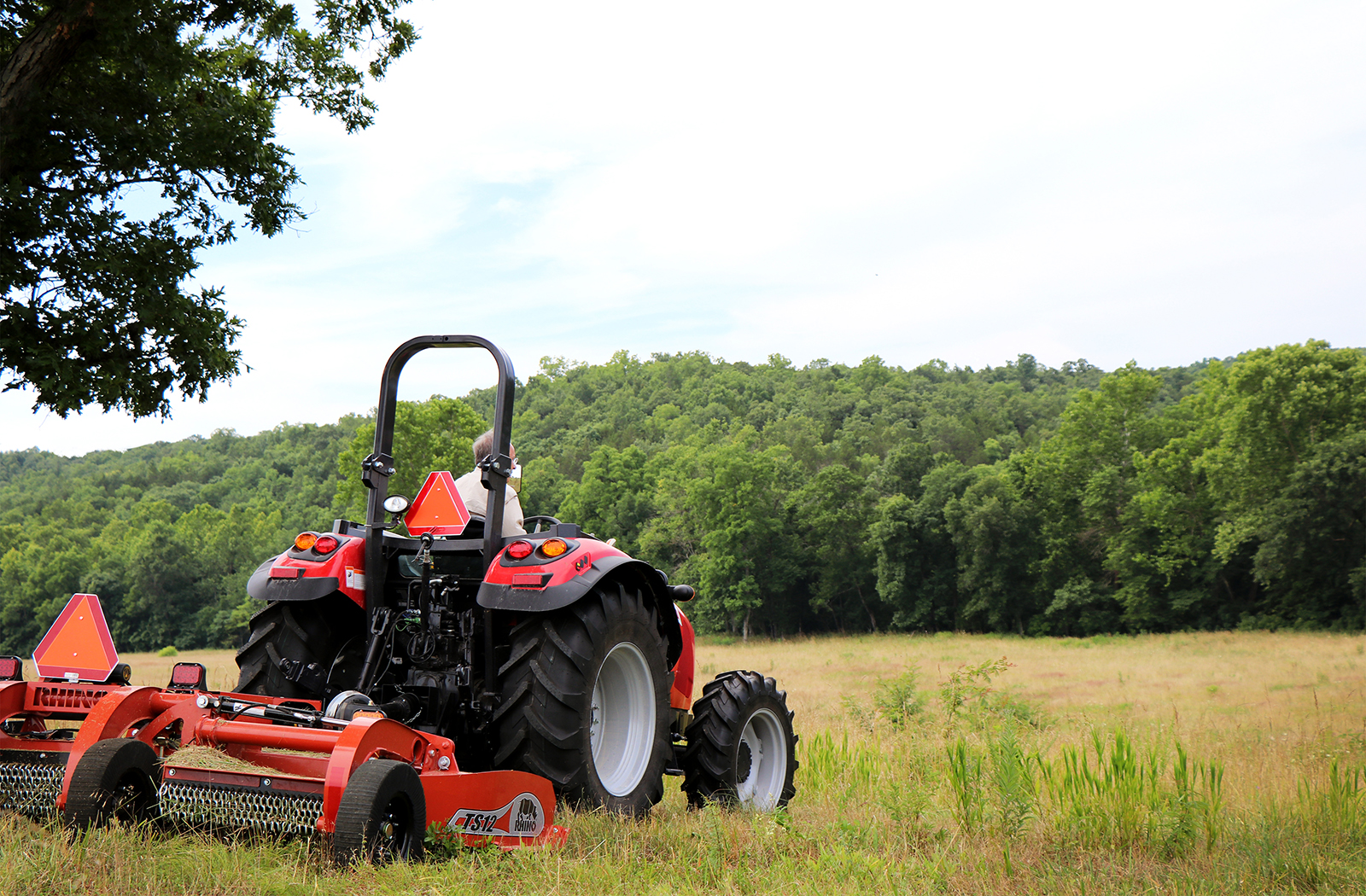

TS12 Stealth Flex-Wing Rotary Cutter
Provides a dramatic reduction in mowing time compared to most Rigid deck cutters.The TS12 Stealth features an exclusive close-coupled design for low tongue weight and shorter turning radius, targeting tractors in the 35-50 PTO horsepower class.
Designed specifically for customers with smaller tractors, this machine’s unique ‘stealth’ appearance, its very short wheel base, and its anti-scalp features make this the ideal machine for customers who need a flex-wing cutter’s versatility but may not have a tractor large enough to pull a 15 foot unit. The TS12 offers a full 12' cutting width, 1 1/2" cutting capacity, and is designed for 540 RPM PTO tractors.
Features and Benefits
- Designed for Tractors with 35 - 50 PTO HP.
- Short Turning Radius for Cutting Small Areas.
- 1-1/2” Cutting Capacity.
- Low Tongue Weight for Smaller Horsepower Tractors.
- Unique “Wing-Bar” Blade Carrier Protects the Gearbox Output Shaft with Minimal Weight.

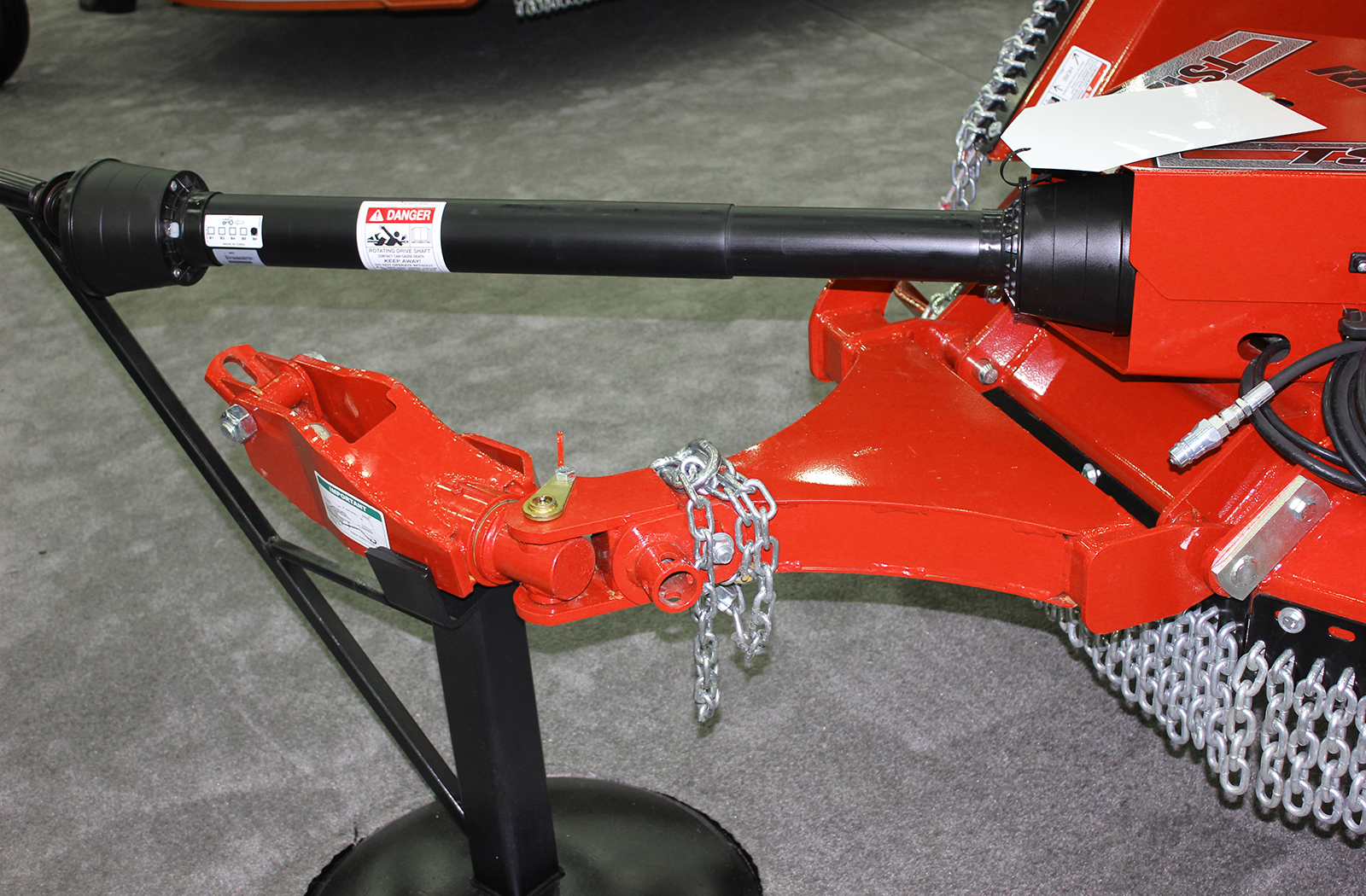

- Equal-Angle, Fully Pivoting Tongue and Direct Acting Suspension System for Uneven Terrain.
- Smooth Decks for Easy Cleaning and Unobstructed Underside for Airflow Through the High-Volume Cutting Chamber.
- Provides Dramatic Reduction in Mowing Time.
- Large Center Skid Shoes and Tapered Wing Shoes Provide Anti-Scalping Protection.

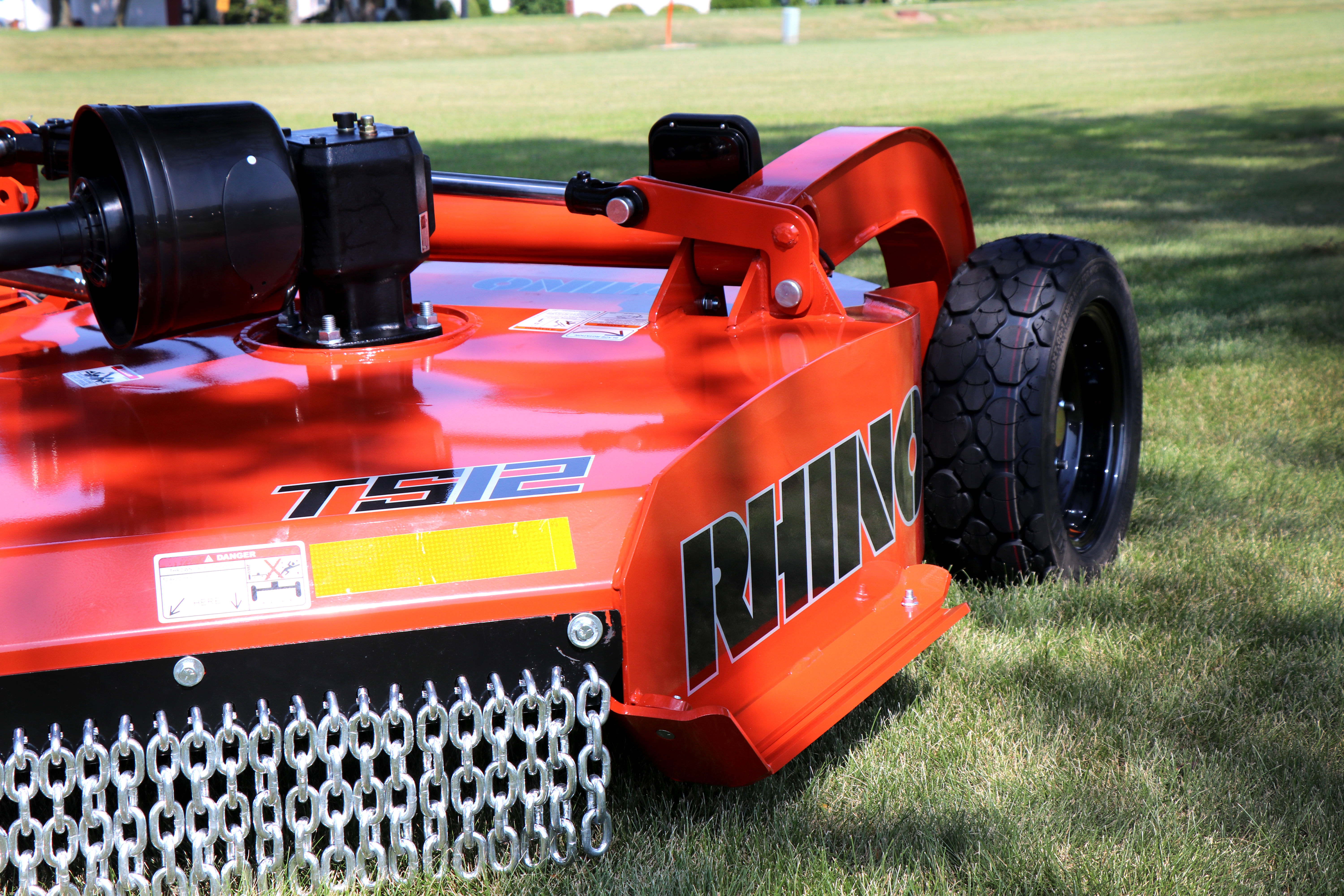

- Chain Guards Included for Protection.
Who Should Buy
- Small Farms
- Parks
- Schools
- Homesteads
Download Literature
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Limited Gearbox Warranty
Years
* For Non-Commercial Use Only
Limited Driveline Warranty
Years
Specifications
| TS12 | |
| Cutting Width | 144'' |
| Transport Width | 97'' |
| Transport Height | 65'' |
| Overall Width | 155'' |
| Overall Length | 148'' |
| Cutting Height * | 2'' - 12'' |
| Self-Leveling Height Adjustment | Hydraulic Cylinder |
| Jack Stand | Std |
| Hitch | Pull-Swivel |
| Blade Carrier | Infinity |
| Blades | 1/2'' x 3'' |
| Blade Overlap | 6'' |
| HP Required | 35 - 60 PTO |
| Gearbox Rating - Power Divider ** | 160 HP |
| Gearbox Rating - Center & Wing ** | 65 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 1 9/16'' |
| Blade Tip Speed - Center 540 RPM | 14,504 FPM |
| Blade Tip Speed - Wing 540 RPM | 13,925 FPM |
| Cutting Capacity (Max.) | 1 1/2'' Diameter |
| Driveline Size - Main | CAT 4 Equal Angle |
| Driveline Size - Wing | CAT 3 |
| Driveline Protection | Slip Clutch |
| Deck Thickness - Center | 10 Ga Bottom, 12 Ga Top |
| Deck Thickness - Wings | Double 12 Ga |
| Side Skirt | 1/4'' x 11 1/2'' |

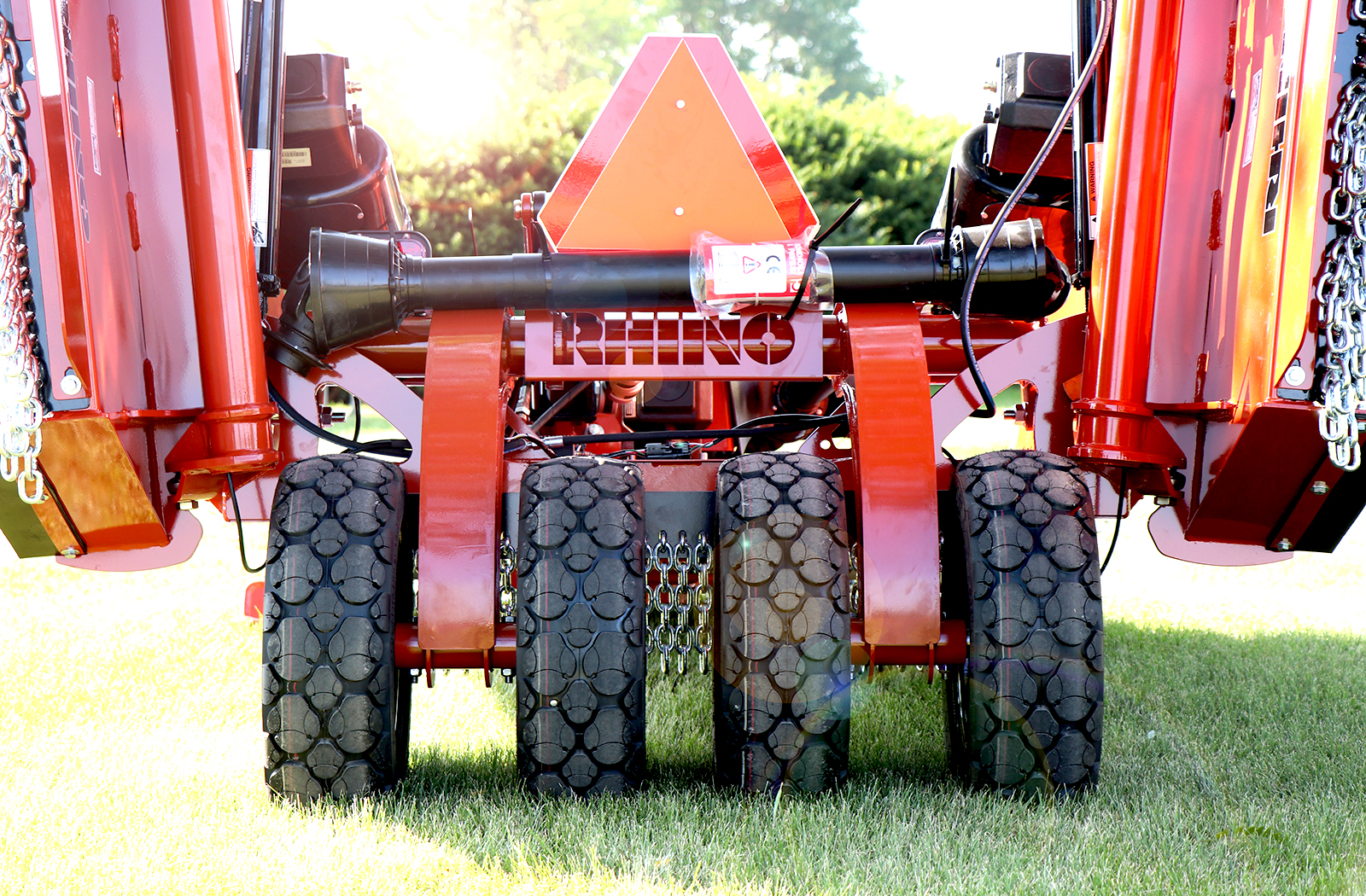

| Tires & Wheels | (4 or 6) Foam Filled Aircraft OR Laminated Tires |
| Wing Lift Hydraulics | Std |
| Wing Flex (Degrees) | 88° Up / 25° Dn |
| Safety Tow Chain | Std |
| LED Light Kit | Std |
| Safety Deflectors | Chain Guards |
| Wheel Base | 126 1/4'' |
| Tongue Weight | 748 lbs |
| Weight (Approx) | 2,750 lbs |
| Manuals | |
| * Cutting Height dependent on Tire Size. | |
| ** Gearbox power rating based on actual field performance. | |
