R SERIES MOWERS
Keep your cuts level—even in hilly areas.When your terrain’s got curves, you need a mower from RhinoAg’s R Series. The pivoting frame follows the contours of the ground, making it ideal for maintaining golf courses, parks, and more. Zero-turn capability means you can navigate with ease, and convertible blades give you the versatility you need for varying cut intensity.
The boron steel blades can be easily sharpened, meaning you’ll have a Rhino that lasts and lasts. Consistent stripes and an even clipping distribution result in a high-quality finish that’s bound to leave an impression.
Features and Benefits
- 100% gear driven - no belts
- Strenx® 700MC high-strength steel

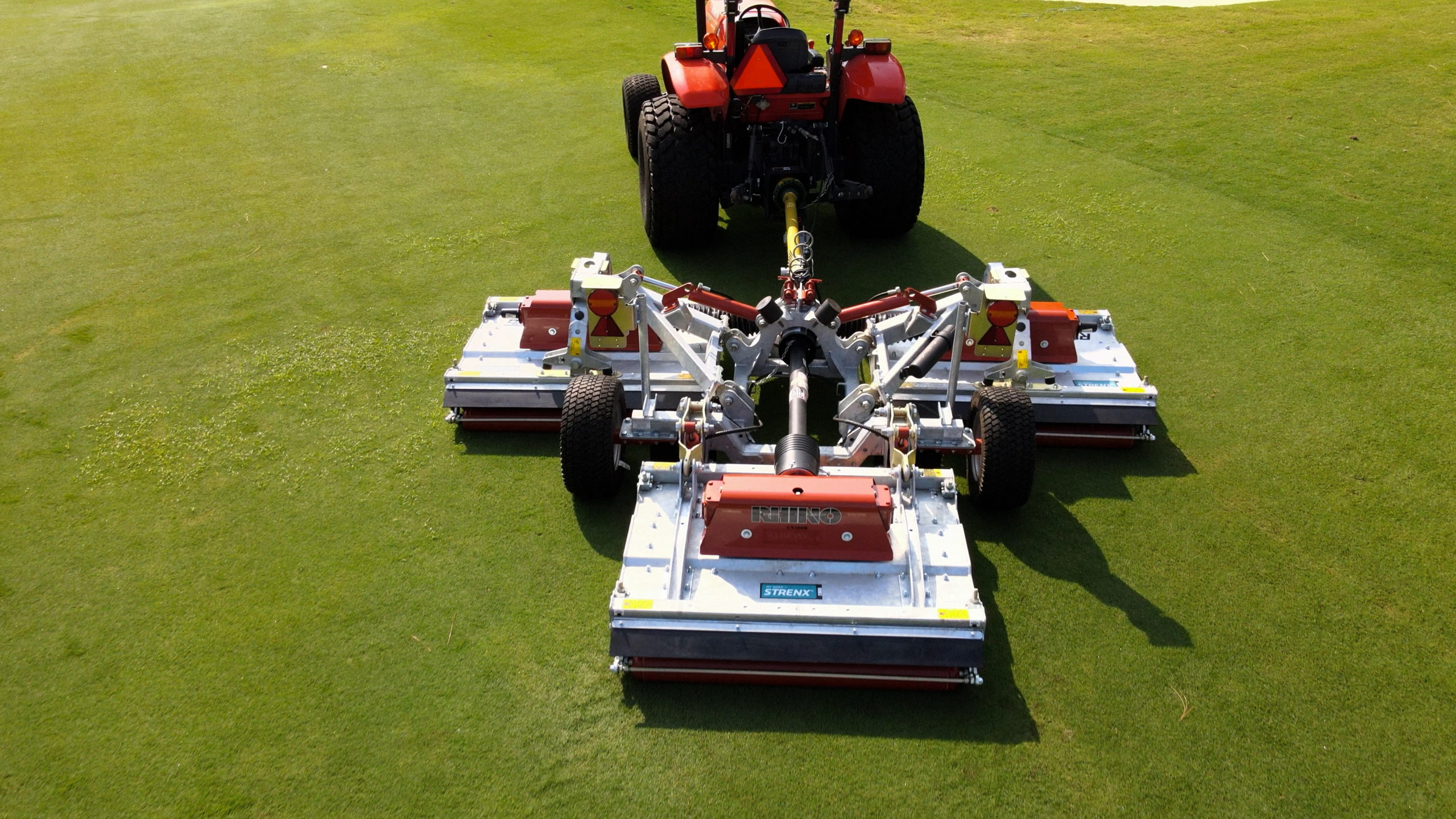

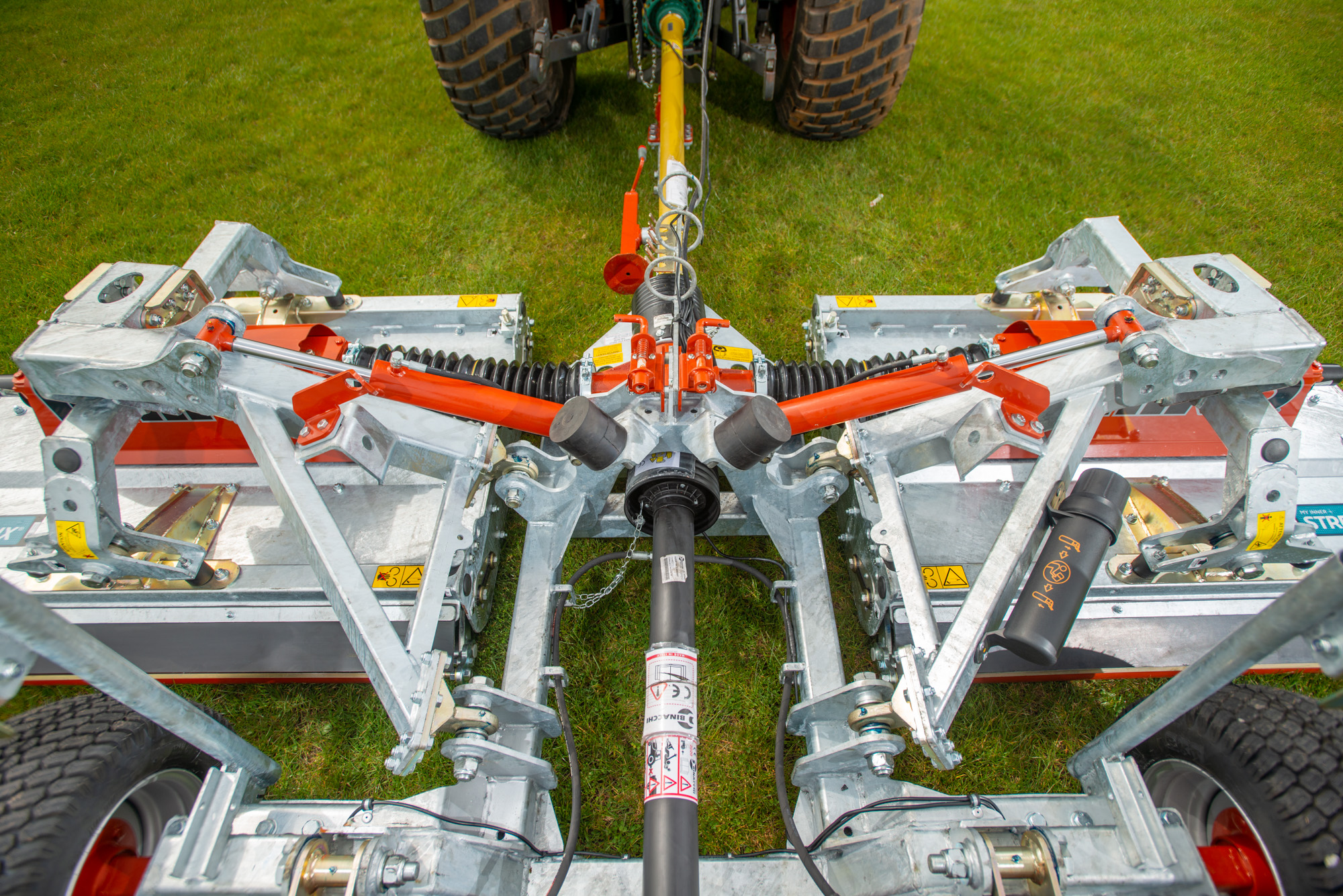

- Multi-pivoting frame with self-aligning spherical bearings to easily hug ground contours

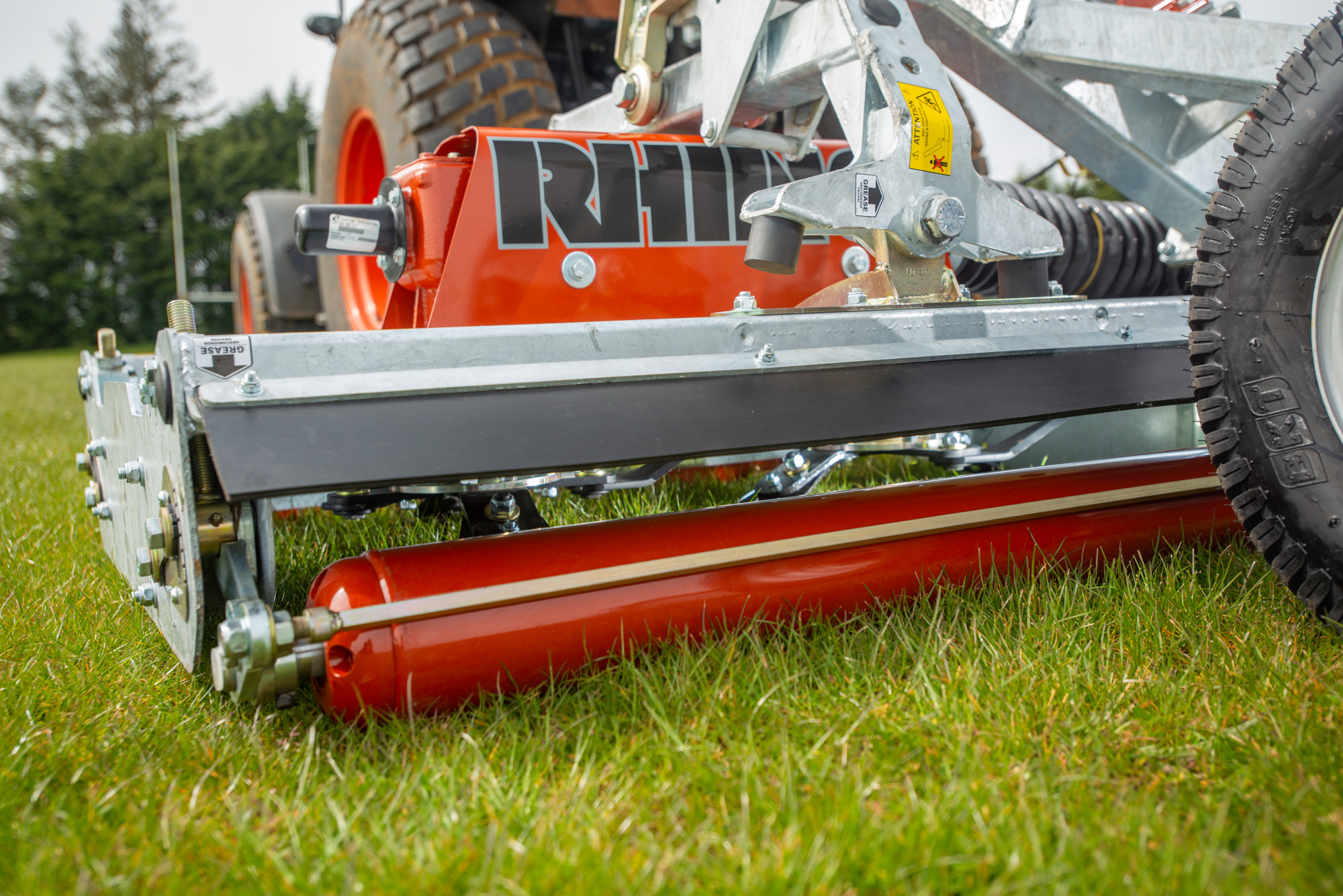

- Full-length rollers for satisfying stripes
- Gearbox driveline and blade system
- 76 m/s blade tip speed

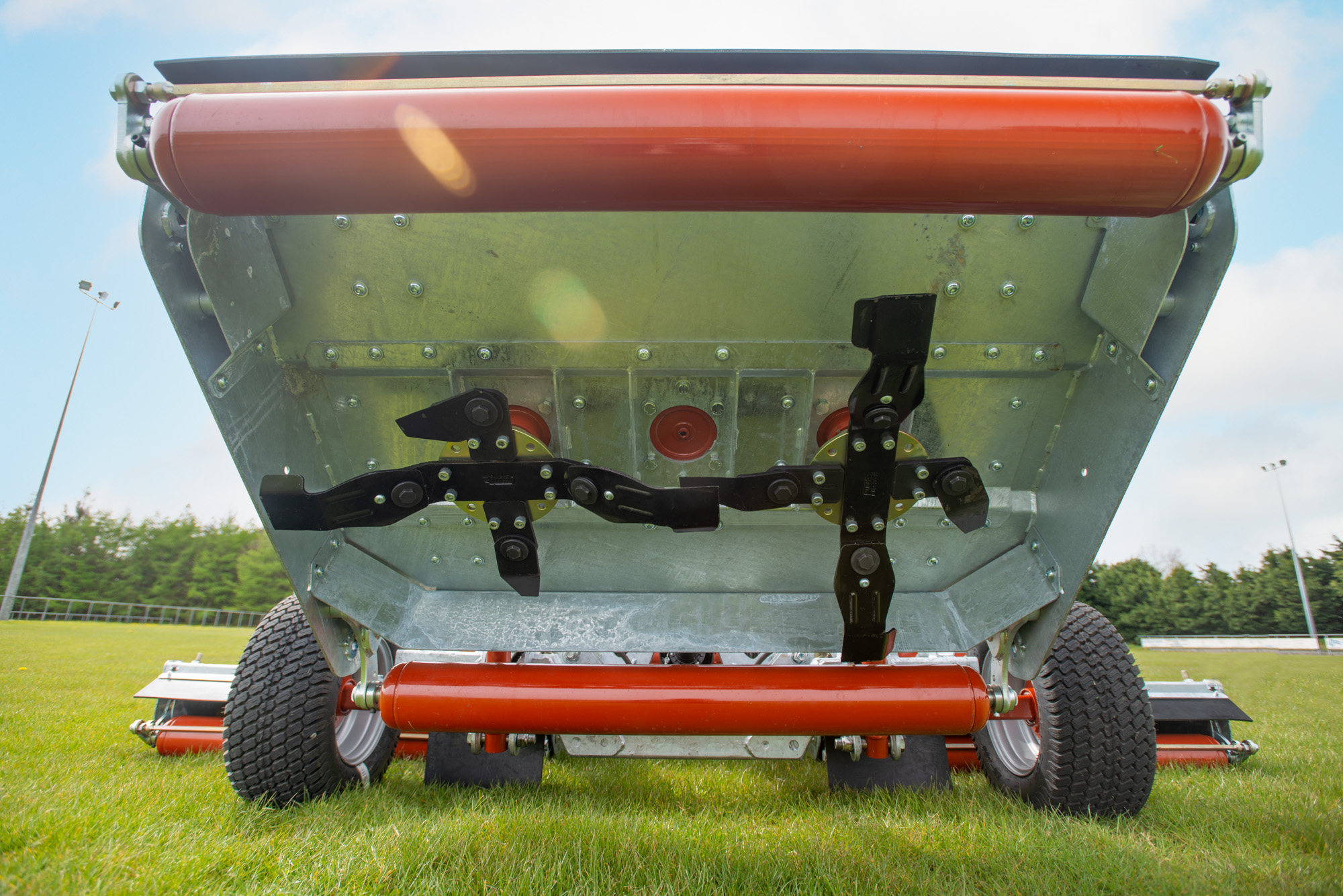

- Blade easily converts from rigid to swinging
- Internal roller bearings for protection against moisture and soil
- Fully-galvanized finish for added durability
Who Should Buy
- Golf Courses
- Parks & Recreation
Download Literature
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Limited Gearbox Warranty
Years
Limited Driveline Warranty
Year
Rhino R126 - 360 Tour
Specifications
| R126 | |
| Cutting Width | 12' 2" |
| Transport Width | 90" |
| Transport Height | 75" |
| Overall Length | 118" |
| Cutting Height | Up to 4 1/2" |
| Hitch | Pull-Type |
| Blade Carrier | 3 1/4" x 3/8" spring steel, hardened and tempered |
| No. of Blades | 24 |
| Blades | 3” x 3/16” spring steel ground edged parallel hardened and tempered, pivoting on high tensile pivot bush assembly |
| Rotars | 6 |
| Mowing Rates | 10 acres/hr @7mph |
| Blade Overlap | 4 1/4" |
| PTO Horsepower Required (Min) | 40 HP |
| Tractor PTO | 540 RPM |
| Output Shaft Diameter | 1 1/2" (40mm) |
| Gearbox Oil | 85W-140 Factory Filled |
| Blade Tip Speed | 14,930 FPM |
| Drivelines | 1 3/8" 6-spline 2300 series wide angle shaft with slip clutch |
| Deck Thickness | 8 Guage Strenx® 700MC folded monocoque construction with reinforcement and underside trough is 8 guage Strenx® 700MC |
| Tire | BKT LG306 wheel 23x10.5, 12-ply rating |
| LED Light Kit | Standard |
| Weight | 3,075 lbs |
