X SERIES ROLLER MOWERS
Versatile, year-round mowing for professional grounds maintenance.Designed for tractors with 50 to 150 PTO HP, the all-new X Series of roller mowers is designed to meet—and exceed—the requirements of maintaining vast areas of grass for contractors, turf farms, and local authorities.
100% gear-driven and built with high-performance Strenx® steel for years of dependable performance, RhinoAg X Series roller mowers are light and strong. They’re finished off with hot-dipped galvanization to ensure they’ll outlast the competition and retain their value.
Features and Benefits

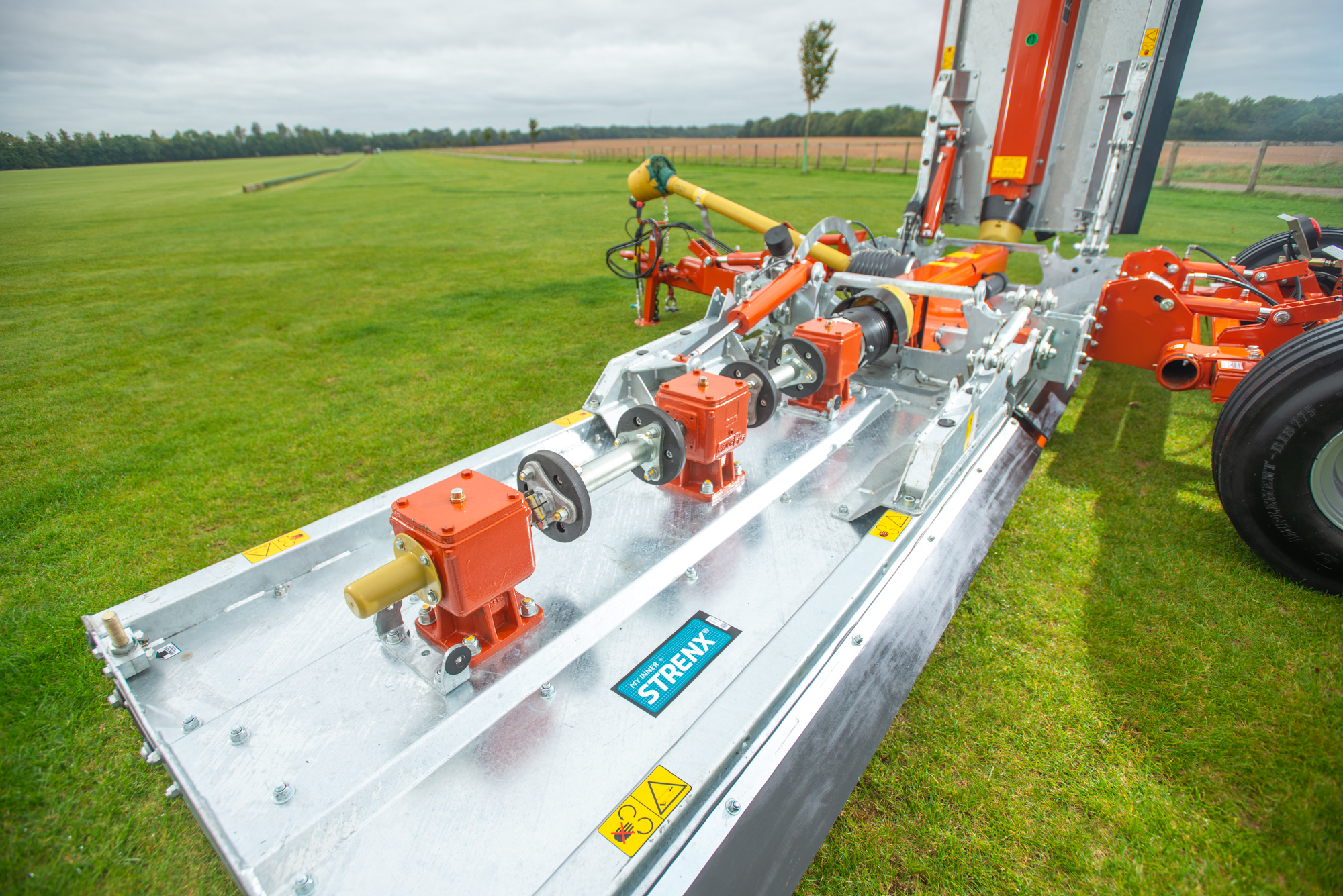

- 100% gear driven - no belts
- 8-gauge Strenx® 700 MC structural steel body and underside trough
- Simple cutting height adjustment from ½” to 5” for versatile mowing
- Full-length rollers that follow ground contour to prevent scalping and produce perfect stripes
- Long-lasting sprung steel blades for hours of continuous work without needing to sharpen
- Sealed internal roller bearings for total protection against moisture, soil, and debris

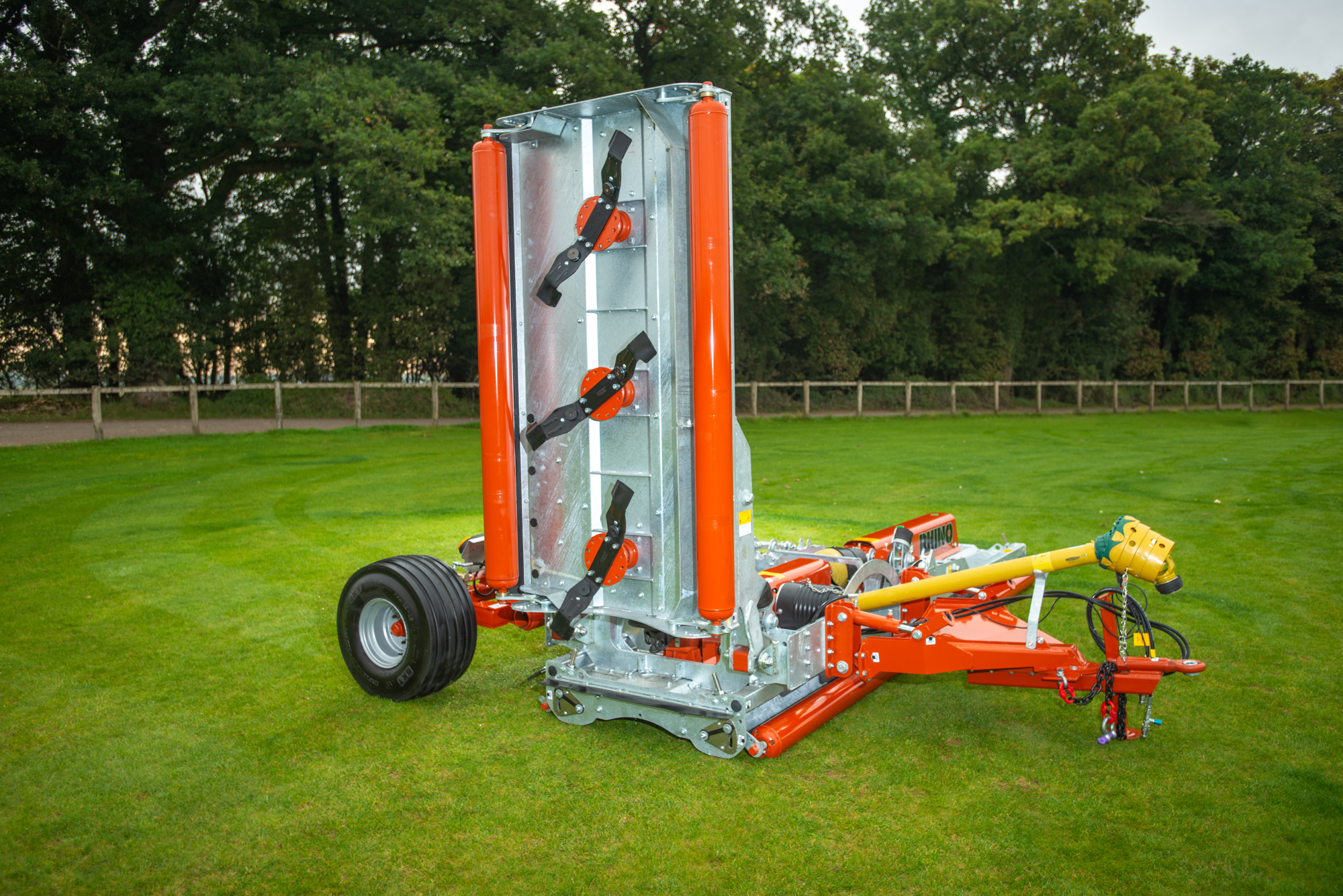

- Compact transport widths for increased accessibility
Who Should Buy
- Contractors
- Sod Farms
- Polo Clubs
- Commercial Mowing
- Universities
- Local Government
Download Literature
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Limited Gearbox Warranty
Years
Limited Driveline Warranty
Year
Specifications
| X1406 | X1808 | X2009 | X2411 | |
| Cutting Width | 13' 1" (157") | 17' 9" (213") | 20' (240") | 24' (288") |
| Transport Width * | 96" | 96" | 102" | |
| Overall Width | 164" | 218" | 245" | 293" |
| Transport Height * | 87" | 114" | 142-3/4" | |
| Overall Length * | 141" | 144" | ||
| Cutting Height * | Up to 5" | |||
| Hitch | Pull-Type | |||
| Blade Carrier | 3¼” x 3/8” spring steel, hardened and tempered | |||
| No. of Blades | 12 | 16 | 18 | 22 |
| Blades | 3” x 1/4” spring steel ground edged parallel hardened and tempered, pivoting on high tensile pivot bush assembly | |||
| Rotars | 6 | 8 | 9 | 11 |
| Mowing Rates | 11.4 acres/hr @7mph | 14.5 acres/hr @7mph | 16.3 acres/hr @7mph | 20 acres/hr @7mph |
| Blade Overlap | 2 1/2" | |||
| PTO Horsepower Required | 50 HP | 90 HP | 105 HP | |
| Tractor PTO | 540 RPM | 1,000 RPM | ||
| Output Shaft Diameter | 1½” (40mm) | |||
| Gearbox Oil | 85W-140 Factory Filled | |||
| Blade Tip Speed | 14,764 FPM | |||

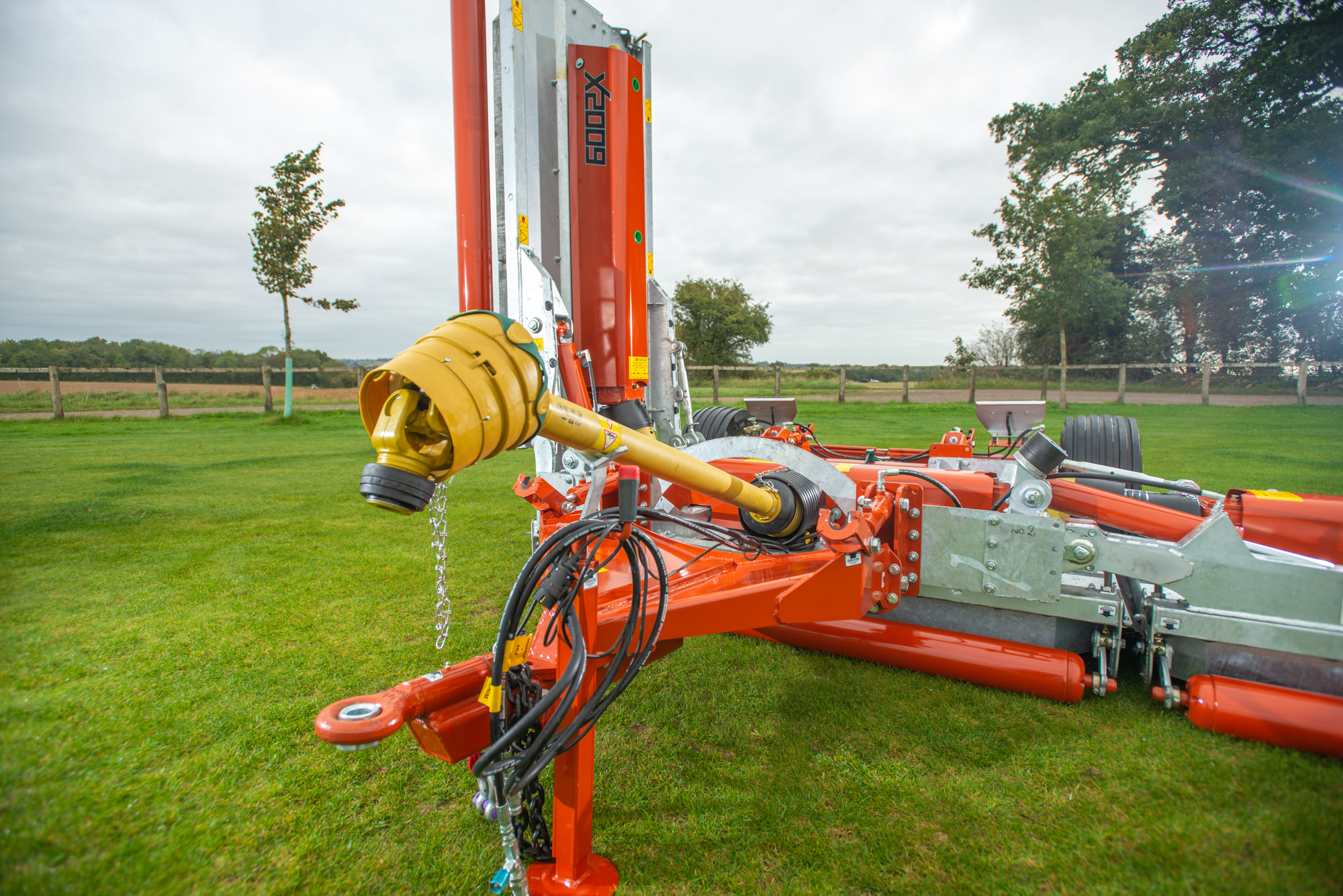

| Drivelines | 540 RPM - 1 3/8” 6-spline V60 wide angle shaft with shearbolt | 1,000 RPM - 1 3/8” 21-spline V60 wide angle shaft with shearbolt | ||
| Deck Thickness | 8 gauge Strenx® 700MC structural steel with reinforcement and underside trough is 8 gauge Strenx® 700MC | |||

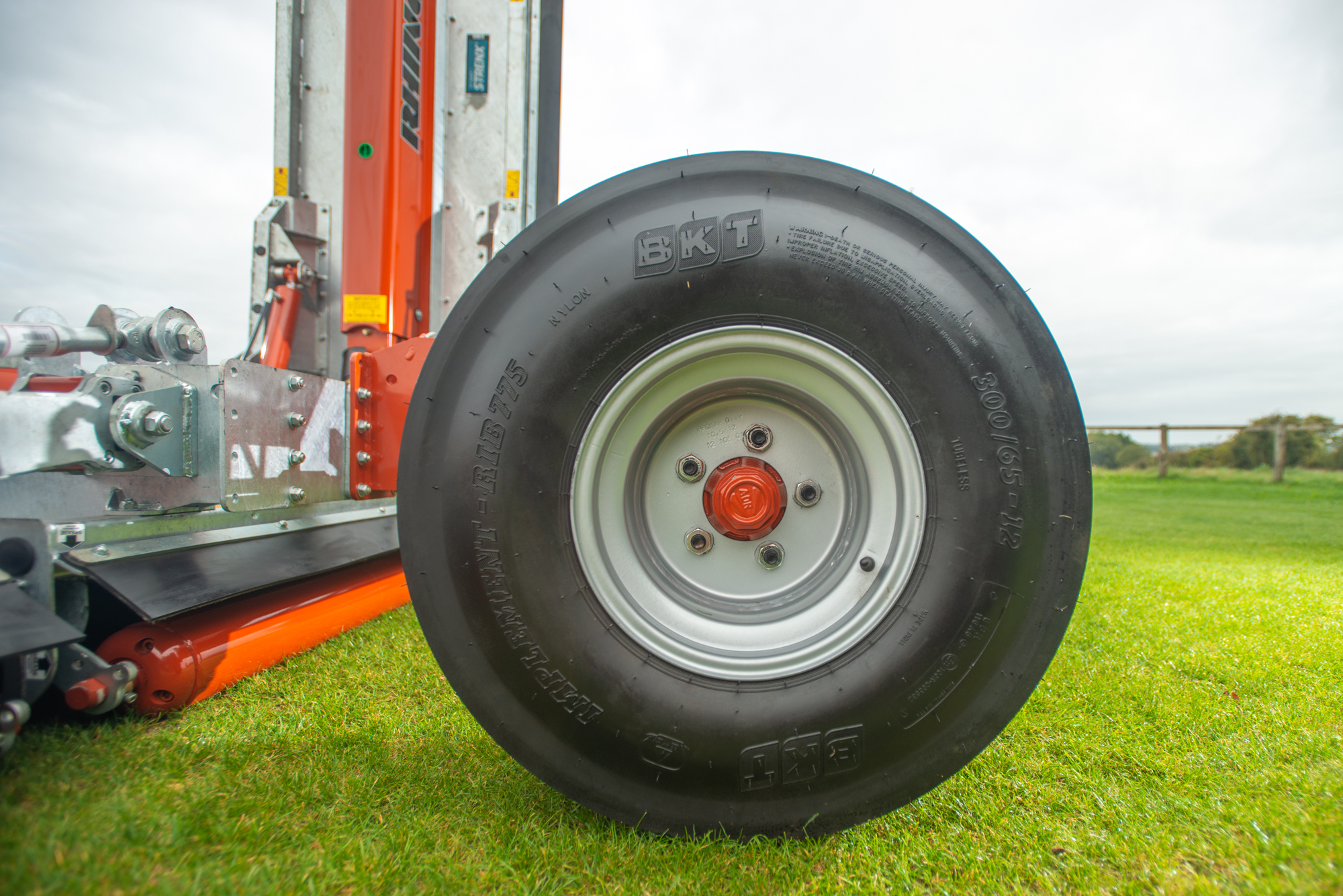

| Tire | 300/65/12 (8-ply rating) | |||
| LED Light Kit | Standard | |||
| Weight (Approx) | 3,671 lbs | 4,035 lbs | 4,460 lbs | 5,000 lbs |
| Manuals | ||||
