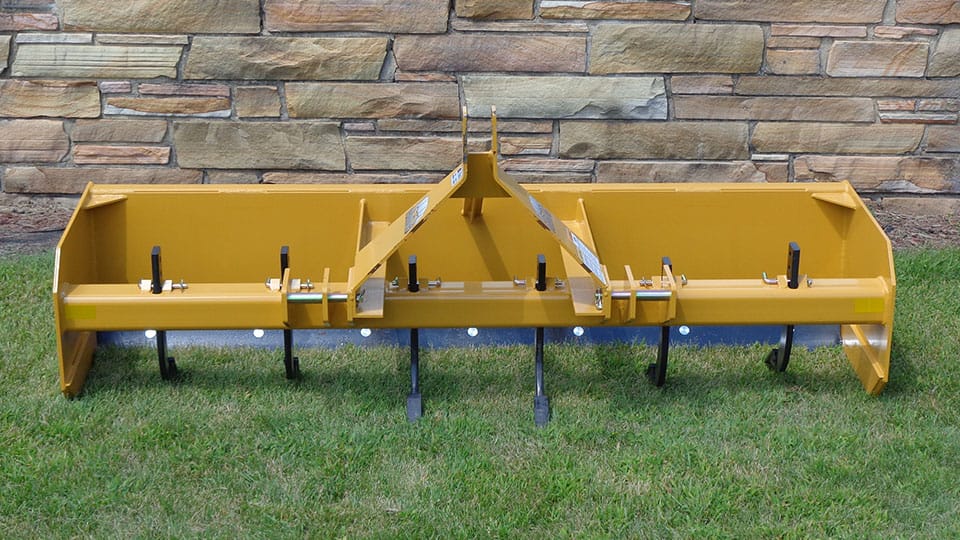

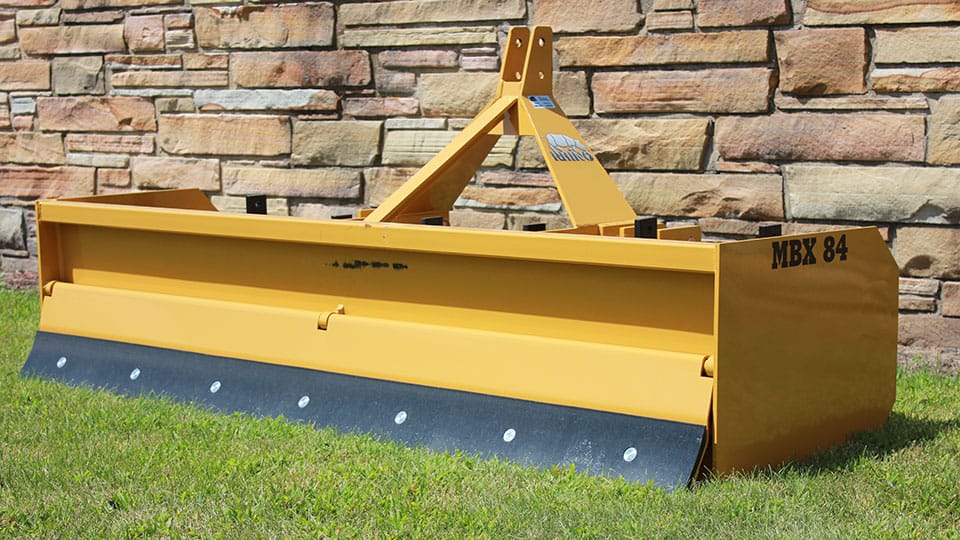

MBX Series Box Blades
Ideal for leveling and landscaping.The perfect option for leveling or grading around the farm or when landscaping is the Rhino MBX Series. These Medium Duty Box Blades offer Rhino durability and strength with their heat-treated scarifier tips, replaceable cutting edges, and heavy-duty triple strap hitches.
Features and Benefits
- Available from 5-8' Width
- Replaceable/Reversible Bolted Cutting Edges
- Swinging Rear Tailgate
- CAT 1 Quick-Hitch Compatible
- 55 PTO HP for 4-Wheel Drive or 65 PTO HP for 2-Wheel Drive
Who Should Buy
- Farm
- Landscaping
- Contract Work
Gallery
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
1
Year
Specifications
| MBX60 | MBX72 | MBX84 | MBX96 | |
| Working Width | 60'' | 72'' | 84'' | 96'' |
| Overall Width | 61'' | 73'' | 85'' | 97'' |
| Moldboard Height | 18'' | 18'' | 18'' | 18'' |
| Box Depth | 21 1/2'' | 21 1/2'' | 21 1/2'' | 21 1/2'' |
| Overall Depth | 27 1/2'' | 27 1/2'' | 27 1/2'' | 27 1/2'' |
| Overall Height | 34'' | 34'' | 34'' | 34'' |
| Cutting Edges | 1/2'' x 6'' | 1/2'' x 6'' | 1/2'' x 6'' | 1/2'' x 6'' |
| Scarifier Size | 3/4'' x 2 1/2'' | 3/4'' x 2 1/2'' | 3/4'' x 2 1/2'' | 3/4'' x 2 1/2'' |
| Number of Scarifiers | 6 | 6 | 6 | 6 |
| Hitch | CAT 1, 2 QH | CAT 1, 2 QH | CAT 1, 2 QH | CAT 1, 2 QH |
| Max Tractor HP (2WD) | 65 | 65 | 65 | 65 |
| Max Tractor HP (FWD) | 55 | 55 | 55 | 55 |
| End Plate Thickness | 3/8'' | 3/8'' | 3/8'' | 3/8'' |
| Weight (Approx) | 580 lbs | 640 lbs | 710 lbs | 790 lbs |
