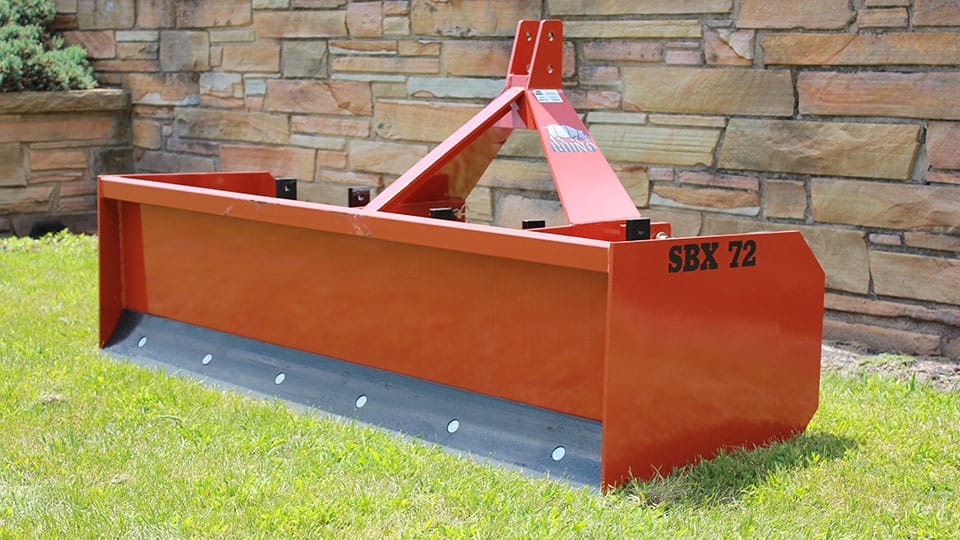

Medium Duty Box Blades

Perfect for grading and back filling

The perfect option for leveling, grading, or back filling your rough surfaces is here. The SBX Medium Duty Box Blade offers the durability and strength you expect from Rhino with its replaceable heat-treated scarifier tips and cutting edge and heavy-duty welded A-frame strap hitch.

Features and Benefits

4 - 7' Width Options
35 PTO HP for 4-Wheel Drive or 50 PTO HP for 2-Wheel Drive
CAT 1 Quick Hitch Compatible
3/8" End Plates
Replaceable/Reversible Bolted Cutting Edges

Who Should Buy

Farms
Ranches
Light Duty Construction Work

Gallery

Photos

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

Year

Specifications

	SBX48	SBX60	SBX65	SBX72	SBX78	SBX84
Working Width	48''	60''	65''	72''	78''	84''
Overall Width	49''	61''	66''	73''	78''	85''
Moldboard Height	18''	18''	18''	18''	18''	18''
Box Depth	24''	24''	24''	24''	24''	24''
Overall Depth	27 1/2''	27 1/2''	27 1/2''	27 1/2''	27 1/2''	27 1/2''
Overall Height	35 1/4''	35 1/4''	35 1/4''	35 1/4''	35 1/4''	35 1/4''
Cutting Edges	1/2'' x 6''	1/2'' x 6''	1/2'' x 6''	1/2'' x 6''	1/2'' x 6''	1/2'' x 6''
Scarifier Size	3/4'' x 2 1/2''	3/4'' x 2 1/2''	3/4'' x 2 1/2''	3/4'' x 2 1/2''	3/4'' x 2 1/2''	¾'' x 2½''
Number of Scarifiers	4	5	5	6	6	6
Hitch	CAT 1 QH	CAT 1 QH	CAT 1 QH	CAT 1 QH	CAT 1 QH	CAT 1 QH
Max Tractor HP (2WD)	50	50	50	50	50	50
Max Tractor HP (FWD)	40	40	40	40	40	40
End Plate Thickness	3/8''	3/8''	3/8''	3/8''	3/8''	3/8''
Weight (Appox)	430 lbs	490 lbs	510 lbs	550 lbs	580 lbs	610 lbs
