Utility Rear Blades

Loaded with user friendly features to reduce your work load.

Whether your tractor is 30 HP or 70 HP and you need to build a terrace, dig a ditch, maintain a road, remove snow, or landscape a site, Rhino has a ruggedly-built blade that's right for you. Rhino offers a choice of three series of blades with working widths from 5' to 8' to get the job done. Each series is loaded with user friendly features to reduce your work load. Features including sturdy “A” frames, multiple adjustment settings, precisely-formed moldboards, and easily replaceable cutting edges make Rhino blades the first choice among productive farmers, ranchers, and landscapers year after year. Compare and see the many ways a Rhino rear blade can turn your tractor into a real workhorse.

Features and Benefits

  • 3 Series to Choose From
  • Multiple Adjustment Settings
  • Replaceable Cutting Edges
  • 5' to 8' Moldboard Widths
  • Optional Skid Shoes

Who Should Buy

  • Terrace Building
  • Ditch Work
  • Snow Removal
  • Landscape Sites

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

1

Year

Compare Models

35 SERIES

The 35 Series blade is available in 5', 6', and 7' widths and is rated for 2-wheel drive tractors up to 35 HP. A CAT I hitch is standard. The 1/4" x 14.5" moldboard can be offset 12" left or right and features a replaceable 1/2" x 6" cutting edge. The moldboard can be pivoted 360° and tilted up or down easily by relocating the index pins. The kingpin is 1-1/4" diameter thick wall tubing for years of service. The 35 series is ideal for small farm applications, residential road maintenance, landscaping, or small ranching jobs.

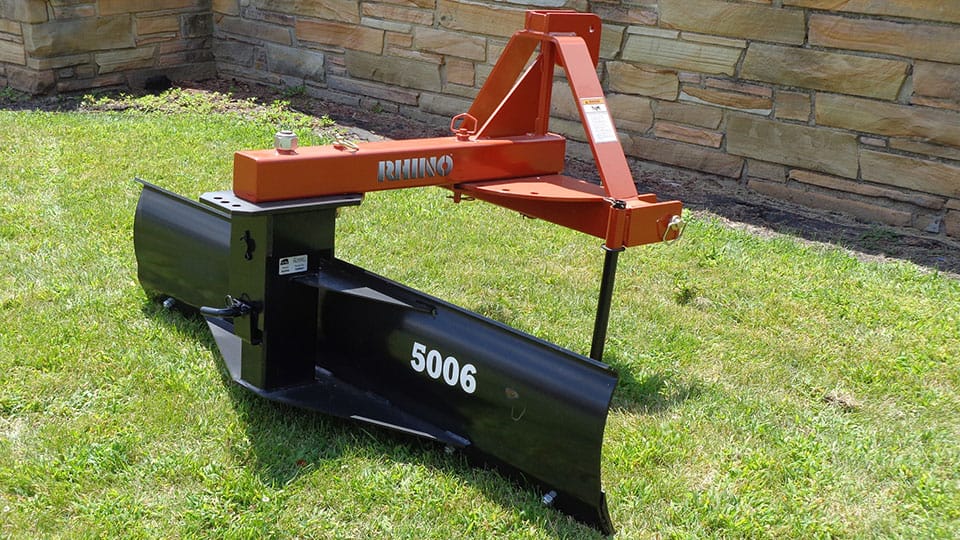

50 SERIES

The 50 Series blade is available in 6' and 7' widths and is rated for 2-wheel drive tractors up to 50 HP. The 50 features a CAT I hitch and a 5/16" x 15.5" formed moldboard with a replaceable 1/2" x 6" cutting edge. The moldboard can be offset 16" left or right. Moldboard pivot and tilt are easily adjustable by simply removing index pins. The heavy-duty 1-1/4" diameter tubular kingpin is standard to deliver all available horsepower to the moldboard. Quick-attach end plates and skid shoes are optional equipment. The versatile 50 series blade is ideal for many general farming, ranching, and landscaping jobs.

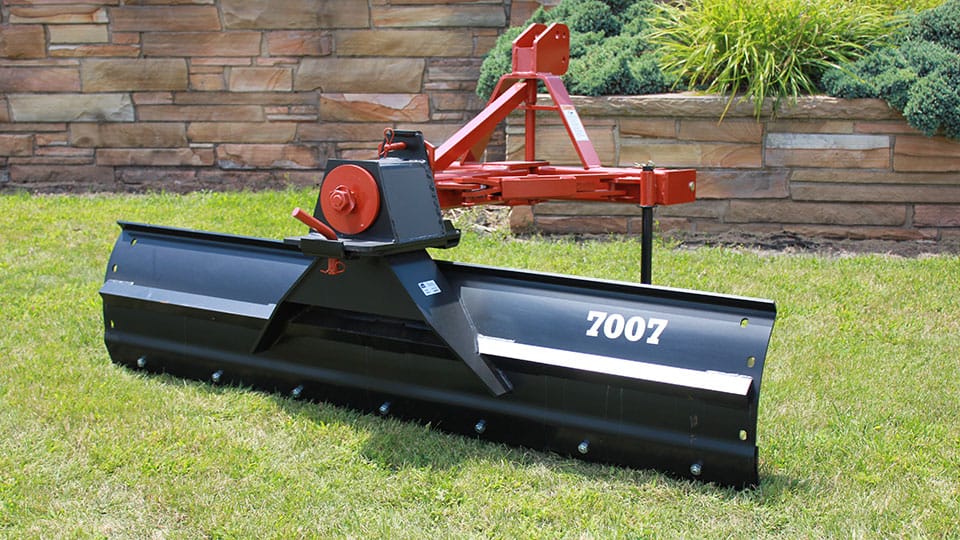

70 SERIES

The productivity and versatility of the 70 Series blade has been proven in the field time after time for over 30 years. The 70 is available in 6', 7', and 8' widths and is rated for 2-wheel drive tractors up to 70 HP. The 70 moldboard can be offset left or right up to 18", pivoted 360°, or tilted up or down 30° by simply relocating index pins. The 2" diameter solid steel kingpin is machined to exacting tolerances to deliver dependable performance year after year. Quick-attach end plates and skid shoes are optional equipment to help add to the versatility of the 70 series blade. The 70 is ideal for farm, ranch, and landscaping applications including ditch digging, farm road maintenance, snow removal, terrace repair, material leveling, and cleaning out feed lots.

END PLATES

The optional quick-attach end plates help turn the 50 and 70 series rear blades into box blades. The end plates can be attached in seconds and are ideal for moving or leveling bulk material. Optional skid shoes are also available on the 50 and 70 series blades to help remove material from prepared surfaces.

REVERSED MOLDBOARD

The moldboard on all Rhino rear blades can be pivoted a full 360° to handle a range of applications. Reversing the moldboard makes easier work of backfilling or hard-to-reach jobs. It is also ideal for providing a professional finish to road maintenance applications.

MOLDBOARD CARRIER

The design of the moldboard carrier on the 35, 50, and 70 series blades helps reinforce the moldboard and allows the moldboard to be pivoted and tilted by simply relocating pins. The tilt option is a feature not found on most competitive small blades, making operation of a Rhino blade much easier on the operator. The 70 also features manual offset adjustment.

Specifications

355070
Moldboard Width5', 6', 7'6', 7'6', 7', 8'
Moldboard (Thickness & Height)¼'' x 14''5/16'' x 15.5''½'' x 19''
Cutting Edge½'' x 6''½'' x 6''½'' x 19''
HitchCAT 1 QHCAT I, QHCAT 1-2, QH
Maximum Tractor PTO HP - 2-Wheel Drive355070
Maximum Tractor HP - 4-Wheel Drive304055
King Pin Diameter1¼'' (Grade 8)1¼'' (Grade 8)1¼'' (Grade 8)
Adjustment TypesManualManualManual
Swing Offset (Max.)12'' Left or Right16'' Left or Right18'' Left or Right
Pivot - Forward5 Positions - Up to 30°5 Positions - Up to 30°5 Positions - Up to 45°
Pivot - Reverse3 Positions - Up to 15°3 Positions - Up to 15°5 Positions - Up to 45°
Moldboard Tilt- Up & Down15°15°30°
Parking StandN/AStd.Std.
Weight (Approx.)5' - 280 lbs6' - 403 lbs.6' - 510 lbs.
6' - 310 lbs7' - 430 lbs.7' 538 lbs.
7' - 340 lbs.8' - 572 lbs.
