Hydraulic Drive

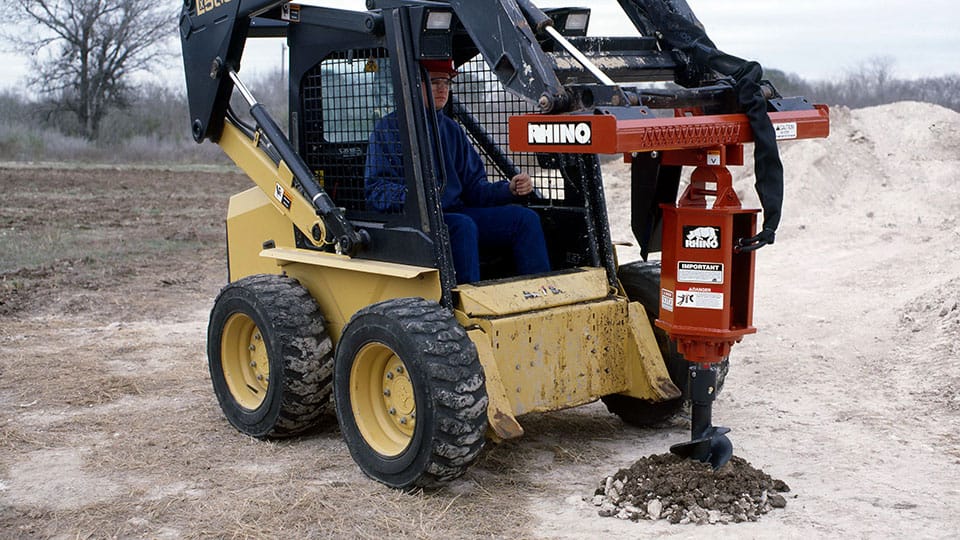

Hydraulic Drive Post Hole Diggers

Ideal for use in a wide range of soil, heavy clay, or loose rock conditions.

The planetary drive digger's drive motors are compatible with flow rates from 10 to 30 GPM and pressures up to 3,000 psi. Mount kits are available for skid steer loader and front end loader applications, and mount brackets include a dual swivel design to keep the auger vertical during operation. The flange mounted output shaft allows for faster service or repair. These industrial grade augers are available in sizes from 6” to 36” diameter, depending on model.

Features and Benefits

Industrial grade augers with 3/8” auger flighting are available in sizes from 6” to 36” diameter, depending on model
Augers available for conditions ranging from loose soil to solid rock or concrete
Flange mounted output shaft for faster service or repair
Mount brackets include a dual swivel design to help keep the auger vertical during operation
Mount kits available for skid steer loaders and front end loader buckets
Drive motors compatible with flow rates from 10 to 30 GPM and pressures up to 3,500 psi
Augers are available for a wide range of soil, heavy clay, or loose rock conditions

Who Should Buy

Extreme Agricultural Applications
Industrial Contractors
Commercial Contractors
N Series Applications: Farms, Ranches, Commercial Contractors

Gallery

Photos

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

Year

Specifications


	H200	H300	H350	LC15	LC20	LC30	LC35
Drive Type	Planetary with Reversible Motor							Planetary with Reversible Motor	Planetary with Reversible Motor	Planetary with Reversible Motor	Planetary with Reversible Motor	Planetary with Reversible Motor	Planetary with Reversible Motor
Output Shaft Size	2'' Hex							2'' Hex	2'' Hex	2'' Hex	2'' Hex	2'' Hex	2'' Hex
Mount Types	Skid Steer Universal, Backhoe, Mini-Excavator, Front End Loader			Skid Steer Universal, Backhoe, Mini-Excavator, Front End Loader	Skid Steer Universal, Backhoe, Mini-Excavator, Front End Loader	Skid Steer Universal, Loader Bucket, Euro Style QA				Skid Steer Universal, Loader Bucket, Euro Style QA	Skid Steer Universal, Loader Bucket, Euro Style QA	Skid Steer Universal, Loader Bucket, Euro Style QA
Max. Auger Diameter (HSDA - Dirt)	30''	36''		36''	18''	30''	36''		36''
Max Auger Diameter (HRAD - Rock)	24''	36''		36''	18"	24"	36"		36"
Max. Output Torque	2,008 Ft-Lbs	2,937 Ft-Lbs	3,582 Ft-Lbs	1,512 Ft-Lbs	1,747 Ft-Lbs	2,511 Ft-Lbs	2,529 Ft-Lbs
Recommended Hyd. Flow	10-20 GPM	15-30 GPM	20-35 GPM	6-15 GPM	10-20 GPM	15-30 GPM	20-35 GPM
Max. System Pressure	3,000 PSI						3,000 PSI	3,000 PSI	3,000 PSI	3,000 PSI	3,000 PSI	3,500 PSI
Digging Depth (w/ Std. Auger)	48''							48''	48''	48''	48''	48''
Drive Protection	Hydraulic Relief Valve							Hydraulic Relief Valve	Hydraulic Relief Valve	Hydraulic Relief Valve	Hydraulic Relief Valve	Hydraulic Relief Valve
Hydraulic Hoses	1/2'' x 8' (Included)							1/2'' x 108'' - Included	1/2'' x 108'' - Included	1/2'' x 108'' - Included	1/2'' x 108'' - Included	1/2'' x 108'' - Included
Manuals	Manuals
