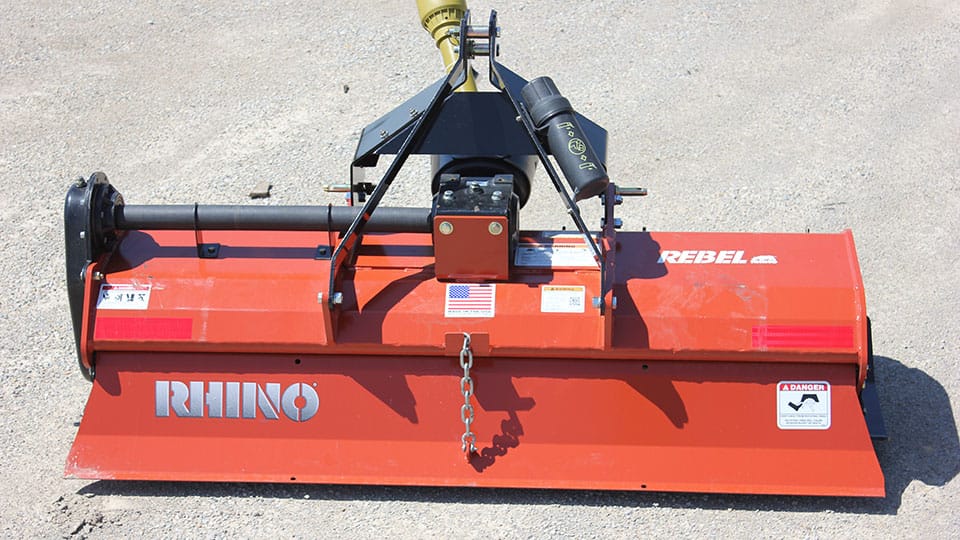

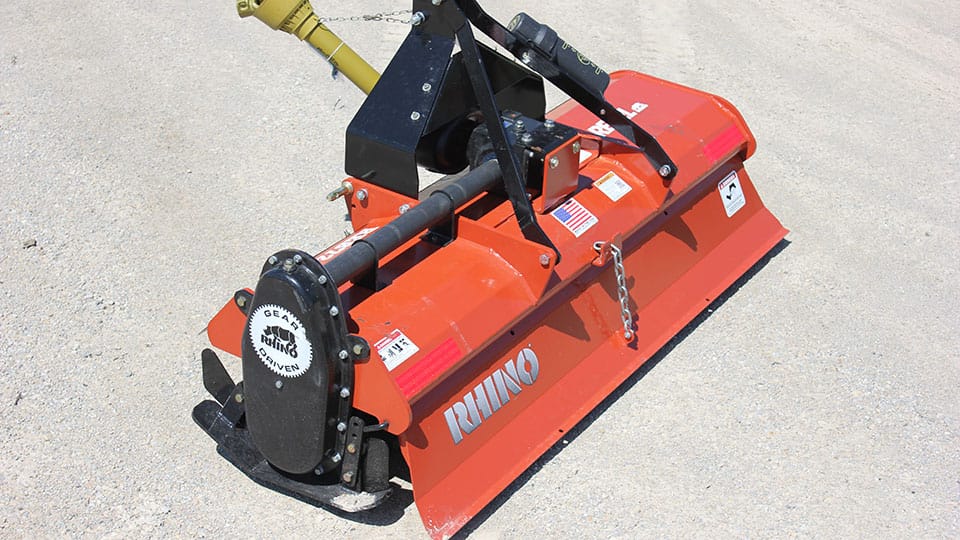

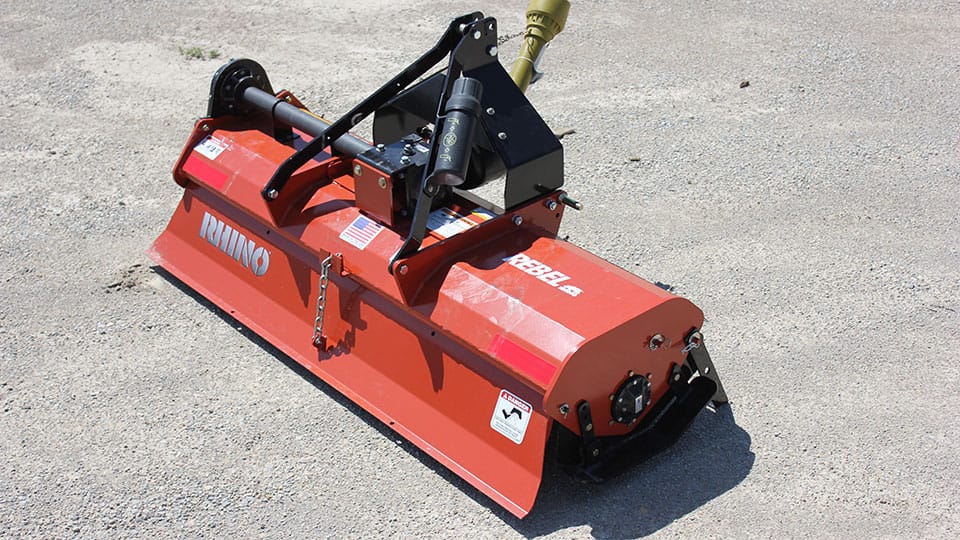

Rebel Series Rotary tillers

Unparalleled quality and performance

Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.

Rhino’s Rebel Series tillers are built tough. Every size in this line is available in both forward and reverse tillage. Each rotor comes equipped with a hardened, “L” shaped blade. With hitches continuously welded to the mainframe, as well as slip-clutch protection on the drive train, repairs and downtime are sure to be rare!

Features and Benefits

  • Six Hardened "L" Blades per Rotor Flange
  • Cast Iron Gearbox Housing
  • Front to Rear Hitch Points are Continuously Welded to the Mainframe
  • Metal Debris Deflector (Reverse Model Only)
  • CAT 1 Standard and QH (5 & 6 ft Model Only)
  • CAT 1 & 2 Standard and QH (7 ft Model)
  • Slip Clutch Driveline Protection Comes Standard
  • 1/2" Steel End Plates

Who Should Buy

  • Homeowner or Commercial Gardeners
  • Landscaping & Soil Conditioning
  • Orchard or Vineyard Cleanup

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

1

Year

Specifications

STANDARD REB60STANDARD REB72STANDARD REB84REVERSE REB60RREVERSE REB72RREVERSE REB84R
Tilling Width59”70.5”82.5”59”70.5”82.5”
Overall Width66”78”90”66”78”90”
Tilling Depth (Max.)*7-1/2”7-1/2”7-1/2”7-1/2”7-1/2”7-1/2”
Hitch - StandardCAT 1CAT 1CAT 1 & 2CAT 1CAT 1CAT 1 & 2
Hitch - Quick HitchCAT 1 QHCAT 1 QHCAT 1 & 2 QHCAT 1 QHCAT 1 QHCAT 1 & 2 QH
Knife Type“L”“L”“L”“L”“L”“L”
Number of Knives425466425466
Number of Flanges79117911
Recommended PTO HP (Min/Max)25 / 45 HP35 / 55 HP45 / 65 HP25 / 45 HP35 / 55 HP45 / 65 HP
Rotor Speed211 RPM211 RPM211 RPM211 RPM211 RPM211 RPM
Driveline SizeCAT 4CAT 4CAT 4CAT 4CAT 4CAT 4
Driveline ProtectionSlip ClutchSlip ClutchSlip ClutchSlip ClutchSlip ClutchSlip Clutch
Gearbox HousingCastCastCastCastCastCast
End Plate Thickness1/2”1/2”1/2”1/2”1/2”1/2”
Rotor/ Blade Rotation Dia17”17”17”17”17”17”
Rotor Shaft Dia3”3”3”3”3”3”
Rotor Drive TypeGear DrivenGear DrivenGear DrivenGear DrivenGear DrivenGear Driven
Tine RotationStandardStandardStandardReverseReverseReverse
Weight (Approx.)673 lbs.747 lbs.817 lbs.683 lbs.759 lbs.831 lbs.
