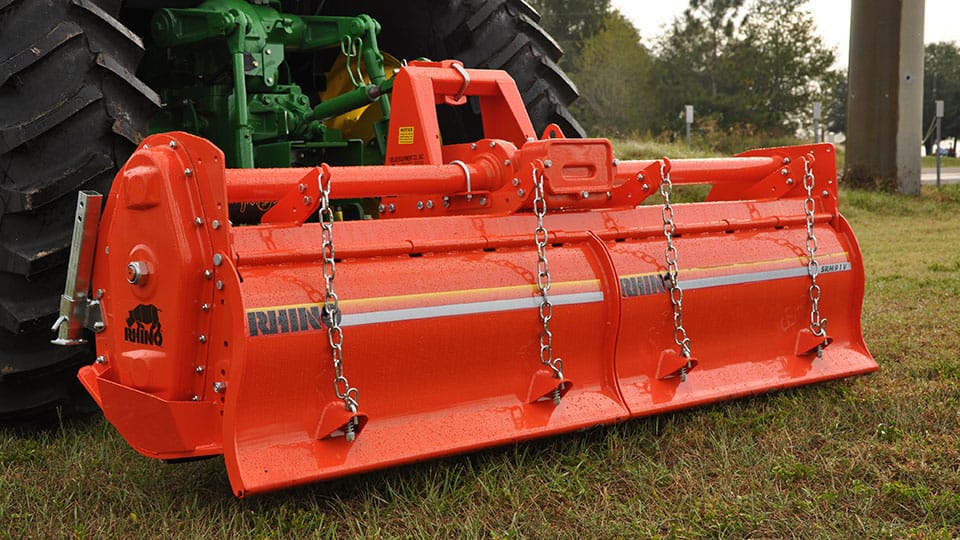

SRM Heavy Duty Tillers

Perfect for heavy-duty use from sod farms to vineyards.

Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.

The rugged SRM series tillers are ideal for heavy-duty commercial contractor or agricultural uses including sod farms, vegetable farms, and vineyards. Built in 81" and 91" widths, Rhino SRM tillers are available with a single or variable speed gearbox for varying applications. SRM tillers are rated for tractors from 40 to 70 HP and feature a Cat 4 driveline with slip clutch protection and a massive gear rotor drive system running in an enclosed oil bath for dependability in extreme conditions.

Features and Benefits

  • Rotor Speeds of 185, 208, 235, or 266 RPM
  • 4-Speed Gearbox
  • CAT 4 Driveline
  • Slip-Clutch Protection
  • Gear Driven
  • Quick-Hitch Compatible

Who Should Buy

  • Sod Farms
  • Vegetable Farms
  • Vineyards
  • Commercial Contractor
  • Heavy-Duty Agricultural

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

1

Year

SRM tillers feature a heavy-duty gear rotor drive system for maximum reliability and superior quality and adjustable skid shoes to help maintain the desired tilling depth. Six replaceable, hardened knives are also standard for long wear and easier maintenance. Maximum tilling depth is 8".

SRM series tillers feature a heavy-duty, fully-shielded driveline for greater operator safety, and they feature slip clutch protection. All Rhino tillers also feature a heavy-duty hitch and A-frame. The gearbox and driveline remain in-line with the tractor PTO for reduced wear on the drive components. The rear deflector is adjustable for different degrees of finish performed on the tilled soil.

Specifications

SRM81VSRM91V
Tilling Width81''91''
Overall Width87''96''
Tilling Depth (Max.)8''8''
Support StandStdStd
HitchCAT 1 & 2, CAT 1 QHCAT 1 & 2, CAT 1 QH
Knife Type'C'''C''
Number of Knives4854
Number of Flanges89
Recommended PTO HP (Min/Max)40 / 7040 / 70
Rotor Speed (RPM) (540 RPM)185/208/235/266 **185/208/235/266 **
Driveline SizeCat 4Cat 4
Driveline ProtectionSlip ClutchSlip Clutch
Housing Thickness4mm4mm
End Plate Thickness8mm8mm
Rotor Drive TypeGearGear
Tine RotationForwardForward
Weight (Approx.) (lbs.)981 lbs992 lbs
** 4-Speed Gearbox
