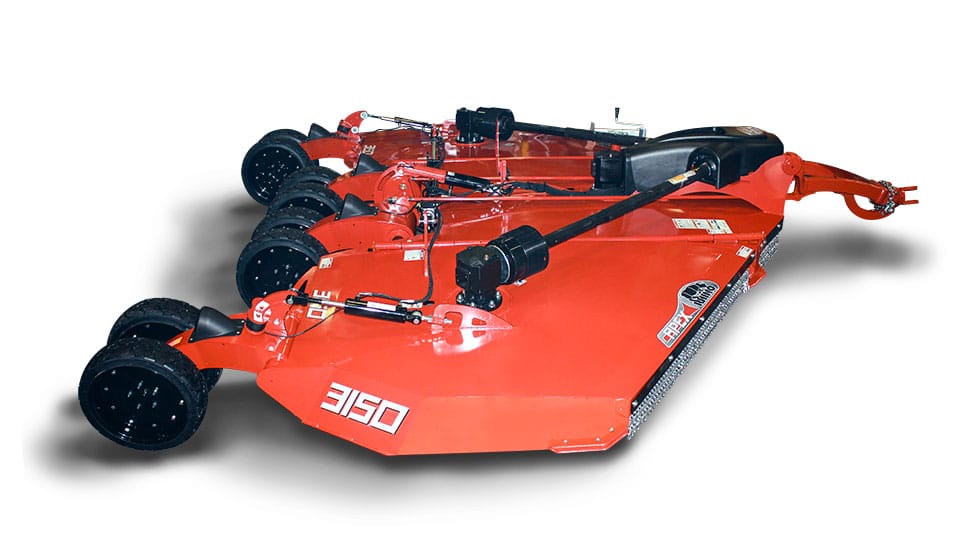

3000 Series Flex-Wing Rotary Cutters

Versatility and durability at an incredible price!

The 3000 or “Apex” Series Flex-Wing Cutters use a ½” x 4” blade to make quick work of grass and brush up to 3” in diameter. These smaller cutters only require 50 horsepower from your tractor, so this is the unit for everyone from a full-time rancher to a weekend hobbyist! As with most of our equipment, the Apex Series cutters are designed with slip-clutch protection and hydraulic wing-lift.

The Apex is an affordable option that shines with the engineering you’ve come to expect from Rhino!

Features and Benefits

  • Low Horsepower Requirement
  • Slip-Clutch Protection
  • Hydraulic Wing Lift, Safety-Tow Chains, LED Light Kits Come Standard
  • 4 Optional Wheel Configurations

Who Should Buy

  • General Mowing
  • Pasture Maintenance
  • Shredding Crops and Stalks
  • Roadside and Right-of-Way Mowing
  • Commercial Mowing
  • Farm Use
  • Heavy-Duty Agriculture Use
  • Industrial Mowing


Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty



Limited Gearbox Warranty



* 5 Year Commercial

Gearbox Seal Warranty



Limited Driveline Warranty




Cutting Width126''180''
Transport Width *88''96''
Transport Height *80''80''
Overall Width *133''187''
Overall Length *176''176''
Cutting Height *2''-14''2''-14''
Height AdjustmentHydraulic CylinderHydraulic Cylinder
Jack StandStandardStandard
Blade CarrierInfinityInfinity
Blades1/2'' x 4'' Parallel Lift1/2'' x 4'' Parallel Lift
Blade Overlap6''6''
PTO Horsepower Required50 HP50 HP
Gearbox Rating ** - Divider160 HP160 HP
Gearbox Rating ** - Center and Wing110 HP130 HP
Gearbox Oil - 85W-140Factory FilledFactory Filled
Output Shaft Diameter2''2''
Blade Tip Speed - Center 540 RPM14,861 FPM14,861 FPM
Blade Tip Speed - Center 1000 RPM15,570 FPM15,570 FPM
Blade Tip Speed - Wing 540 RPM14,861 FPM14,861 FPM
Blade Tip Speed - Wing 1000 RPM15,776 FPM15,776 FPM
Cutting Capacity3''3''
Driveline Size - MainCAT 5 CVCAT 5 CV
Driveline Size - WingCat 4Cat 4
Driveline ProtectionSlip ClutchSlip Clutch
Deck Thickness10 GA10 GA
Side Skirt1/4'' x 9 5/8''1/4''
Tires and WheelsSee OptionsSee Options
Wing Lift HydraulicsStandardStandard
Wing Flex (Degrees)90 degrees Up/25 degrees Down90 degrees Up/25 degrees Down
Safety Tow ChainStandardStandard
LED Light KitStandardStandard
Safety DeflectorsRubber Deflectors or Chain GuardRubber Deflectors or Chain Guard
Tongue Weight1,610 lbs
Weight (Approx)5,190 lbs

3000 Series Manuals

* Dependent on Tire Size
** Gearbox Ratings Based on Field Performance
