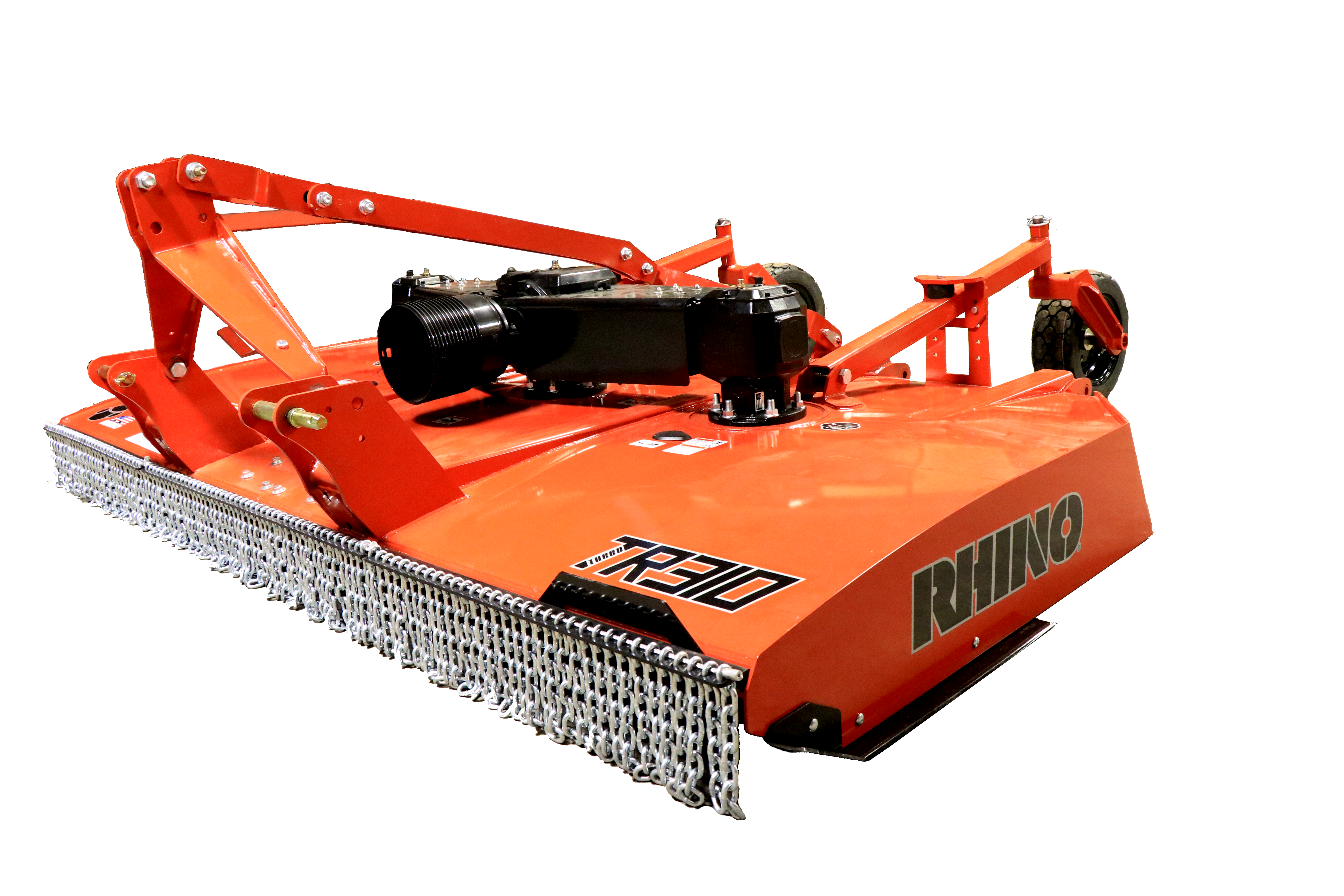

TR 300 Series Multi-Spindle Rotary Cutters

Innovative new suspension and driveline designs.

The robust TR Series is the latest addition to RhinoAg’s already-impressive lineup of multi-spindle cutters. These rugged cutters offer superior cut quality, easier maintenance, and longer life expectancy to give you the years of dependable service you’ve come to expect from RhinoAg.

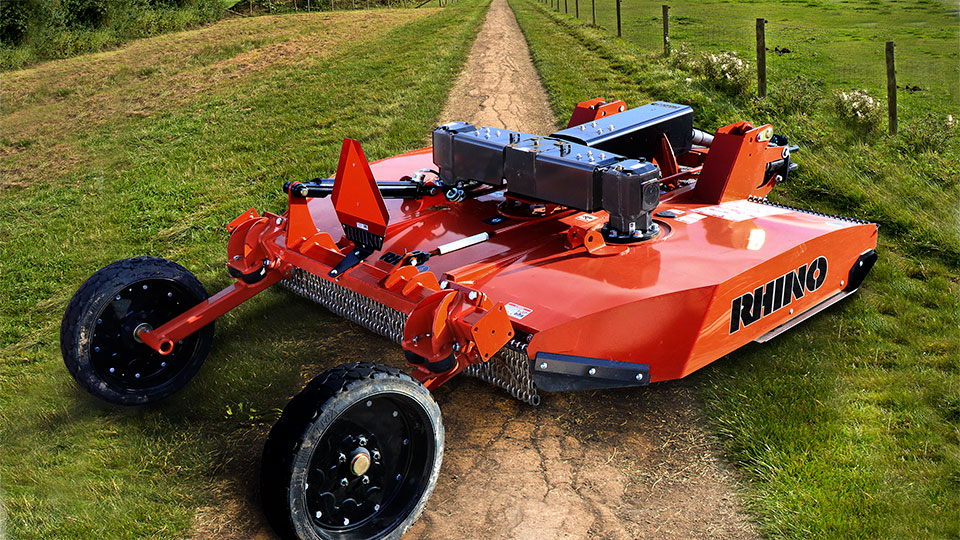

The 300 pull types feature a rigid-deck suspension system that creates a more even cut and offers longer part life due to reduced impact load on critical components. As heavier units, the TR308 and TR310 need this independent axle suspension to help reduce the hard, continuous impacts that cutters see out in the field daily.

Features and Benefits

Clean, modernized deck design for easy cleaning and maintenance
CV drivelines on all pull-type units
CAT 2 & 3 hitch compatible
Slip clutch driveline protection
EZ cutting boxes on every unit; EZ160 divider box and EZ160 cutting box on the TR310

Who Should Buy

Farms
Ranches
Demanding Agricultural Maintenance

Download Literature

TR308 Literature

Gallery

Photos

Warranty

Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty

Year

Limited Gearbox Warranty

Years

Gearbox Seal Warranty

Years

Limited Driveline Warranty

Year

Specifications


	TR308	TR310
Cutting Width	8' (96'')	10' (120'')
Overall Width	103''	127 1/4''
Overall Length	94 1/2'' - Lift 97 1/2" - Semi 143" - Pull	107 1/4'' - Lift 155" - Pull
Cutting Height	1'' - 15''	1'' - 14''
Height Adjustment	Cylinder - Pull/Semi	Cylinder - Pull
Jack Stand	Std. - Pull		Std. - Pull
Hitch	CAT 2/ CAT 3 Std. CAT 2/ CAT 3 Q.H, Pull		CAT 2/ CAT 3 Std. CAT 2/ CAT 3 Q.H., Pull
Blade Carrier	Infinity - Steel		Infinity - Cast
Blades	1/2'' x 4'' Parallel		1/2'' x 4'' Parallel Updraft
Blade OverLap	4''		4''
HP Required	55 HP - Lift 35 HP - Pull/Semi	80 HP - Lift 55 HP - Pull
Gearbox Rating* - Center	100 HP	210 HP
Gearbox Rating* - Outboard	130 HP	210 HP
Gearbox Oil (85W-140)	85W - 140 Factory Filled Lucas Oil
Output Shaft Diameter	2" (50mm)	2 3/8''
Blade Tip Speed - 540 RPM	16,512 FPM	16,215 FPM
Blade Tip Speed - 1000 RPM	16,378 FPM	16,238 FPM
Cutting Capacity (Max)	3''		3''
Driveline Size	CAT 4 - Lift/Semi CAT 5 - Pull	CAT 4 - Lift CAT 5 - Pull
Driveline Protection	Slip Clutch		Slip Clutch
Deck Thickness	10 Ga		10 Ga
Side Skirt	1/4''		1/4''
Tires & Wheels	Laminate - Lift Laminate or HD Rhino Trax - Pull	Laminated or Rhino Trax
Safety Tow Chain	Std. - Pull	Std. - Pull
Safety Deflector	Single or Double Chain Guards		Single or Double Chain Guards
Weight	1,950 lbs (Lift) 2,350 lbs (Pull) 1,020 lbs (Tongue)	2,670 lbs (Lift) 3,100 lbs (Pull) 1,280 lbs (Tongue)
Manuals	TR308 Manuals	TR310 Manuals

* Gearbox power ratings based on actual field performance
