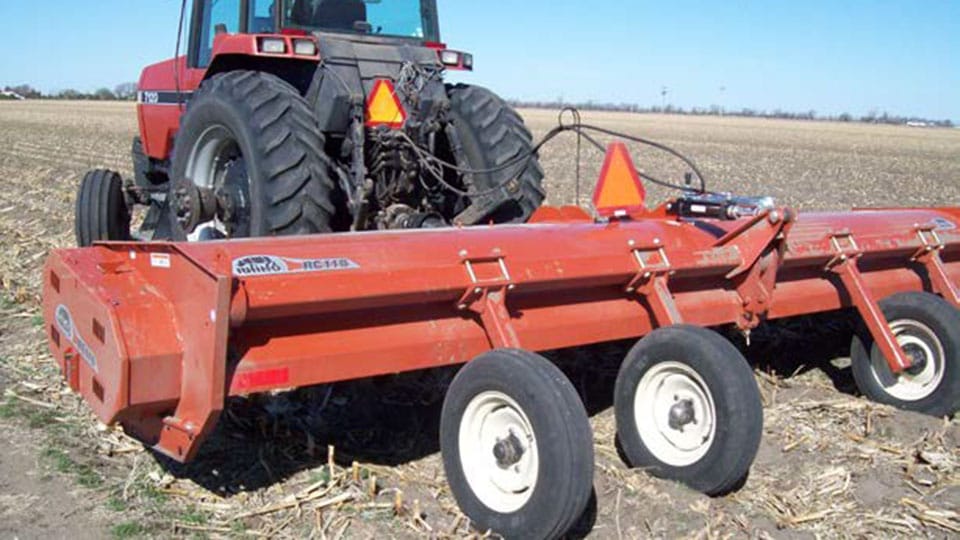

Row Crop Flail ShreddersDesigned to provide maximum shredding of crop material
Rhino® RC flail shredders are designed to provide maximum shredding of crop material while leaving the residue evenly distributed across the width of the machine.
RC flail shredders feature a five-year limited gearbox warranty and are available with a three-point lift, semi-mount or pull-type hitch in shredding widths of 15', 18', 20' and 25'. The drivetrain is built tough with standard heavy-duty features including a Cat 5 or Cat 6 main driveline, a 207 HP 1000 RPM gearbox, and 5 x 5 v-banded drive belts to handle the power of larger tractors in tough conditions. The shredder housing is a formed 3/16" thick hood with internal 3/16" stiffeners at critical wear areas that add structural strength to the mainframe and extend the life of the shredder. The specially designed housing and 12,620 FPM* blade tip speeds help assure maximum crop shredding and insect habitat destruction. The shredder blades are hard-surfaced with tungsten carbide for maximum wear life and provide more cuts per foot of travel than most competitive shredders. The resulting "mulch" speeds the rate of material decomposition and nutrient return to the soil while providing ground cover to help prevent erosion caused by wind and water.
Features and Benefits
- Chops Through Tough Cotton, Corn Stalks, Milo, Rice, Etc.
- Quickens Decomposition of Plant Residue to Get Nutrients Back to the Soil
- Provides Ground Cover Minimizing Erosion.
- Available in 15’, 18’, 20’, and 25’ Widths to Fit Your Row spacing.
Who Should Buy
WarrantyIndustry-leading toughness. Industry-leading warranty.
Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Limited Gearbox Warranty
The three-point and pull type RC flail mowers feature in-line axles that can be adjusted to fit most row spacings. The cutting height can be adjusted using either a hydraulic lift cylinder on all models or a ratchet lift screw on the RC115, and RC118.
The semi-mount RC flail’s axle utilize a castor wheel assembly. The width between the castor wheels can be adjusted to fit most common row spacings. Each castor wheel features a ratchet link for individual height leveling. The semi-mount option is equipped with a full three point hitch attachment. Every RC flail features reverse blade rotation for finer shredding of crop materials.
The cuttershaft features heavy-duty, 2" (2-9/16" RC25), double-row spherical roller bearings for longer service life. Direct belt tension on two 5V-banded belts reduces belt wear and maintenance costs. The shield is hinged for easy access during routine maintenance. The RC115, RC118, RC120, and RC125 feature four adjustable axles as standard equipment.
The 10-3/4" diameter, thick-walled cuttershaft is computer-balanced for smooth operation. The knives are hard-surfaced with tungsten carbide for maximum wear and are mounted directly to the cuttershaft. The absence of "D"-rings eliminates unnecessary wear points. The RC blades are reversible for a longer service life. Adjustable dual recutter bars enable the unit to cut the material into small pieces for faster decomposition of crop residue.
The RC flail from Rhino...providing the best in reliability and performance.
The RC flail shredder is designed to provide fast efficient shredding of crop material including cotton, corn, milo, rice, wheat, and vegetables.
The RC120 and RC125 are available with a hydraulic end tow package for ease in transport. The narrow transport width allows the row crop shredder to pass through narrow gates and be easily transported on the road. The end tow package utilizes two cylinders to raise and lower the machine and a foldable tongue for minimal interference when the RC is in use. (SMV and safety lights are now standard equipment.)
The cuttershaft features heavy-duty, 2" (2-9/16" RC125), double-row, spherical roller bearings. The bearings are triple sealed for extra protection and extended service life. The bearings are greased through external grease lines for easier maintenance. An anti-wrap seal protector design reduces the risk of seal damage.
The heavy-duty quick hitch frame on the semi-mount and three-point units allow for quick and easy implement attachment. The semi-mount machine is equipped with a full 3-point hitch for raising the machine when necessary. Adjustable jack stands are standard on all semi-mount and three-point units for more secure storage. The RC flails feature U-joint side drivelines for worry free transfer of power to the drive belts. Easy flip up shields make routine maintenance easy and convenient.
|Cutting Height||1" - 18"|
|Hitch||CAT 2 & 3 QH - Lift *||Lift, Pull or Semi-Mount|
|Semi-Mount or Pull-Type*||-|
|Cuttershaft Diameter||10 3/4''|
|Blades||Hard-Surfaced w/ Tungsten Carbide|
|Horsepower Required - Lift||120 HP||130 HP||160 HP|
|Horsepower Required - Semi-Mount||100 HP||110 HP||120 HP||150 HP|
|Horsepower Required - Pull||100 HP||110 HP||120 HP||140 HP|
|Tires||(4) 6.70 x 15||(4) 9.5L-15''|
|Gearbox Rating (1000 RPM)||207 HP|
|Gearbox Warranty||5 Year Limited|
|Gearbox Oil (85W-140)||Factory Filled|
|Knife Tip Speed||12,620 FPM||12,620 FPM, Reverse Rotation|
|Number of Blades||168||200||216||272|
|Driveline Size||CAT 5/ CAT 6|
|Driveline Protection||5 x 5 V, Banded Belt|
|Rotor Bearing Protection||Anti-Wrap Seal Protector|
|Cuttershaft Bearings||2 9/16'' Triple Sealed|
|Hood Thickness||3/16, With 3/16 Internal Wear Liners|
|End Plate Thickness||1/4''|
|Safety Deflector - Lights||Std|
|Weight (Approx.)||4,425 lbs||4,785 lbs||4,950 lbs||6,300 lbs.|
|* Tractor Quick Hitch must be used for Lift-Type and Semi-Mount units|
