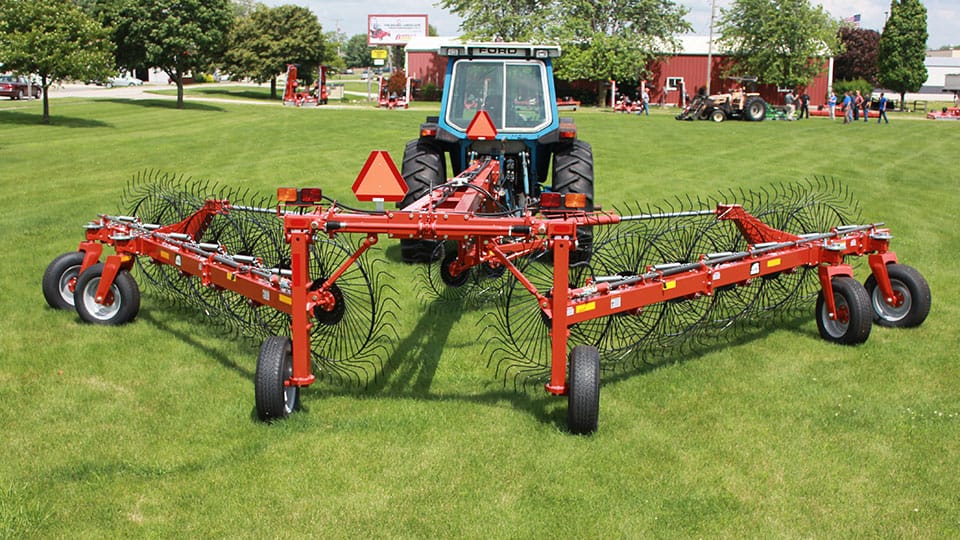

RDF Series Revolution Rakes
Rake large fields quickly, making your haying operation more efficient and profitable.High capacity and flexibility are the hallmarks of the RDF rake. With working widths ranging from 25' to 30' 10", large fields are raked quickly, making your haying operation more efficient and profitable. The RDF rake features out-front independently floating rake wheels for unobstructed hay flow through the rake. Hydraulics adjust the rake arms from working position to transport, plus raise and lower the rake wheels for greater convenience. Ground pressure can be adjusted with the hydraulic cylinder stop.
Extra Equipment
Hydraulic Dual Center Kicker Wheel Kit
Single Side Opening Kit (One sided raking)
Rear Tandem Wheel Kit (Added stability on uneven terrain)
Features and Benefits
- Narrow Transport Width of 8' 4"
- Optional Hydraulic Dual-Center Kicker Wheel Kit
- Operating Speeds Up to 14 MPH
- Optional Rear Hydraulic Windrow Opening Kit
- Floating Rake Wheels to Follow Ground Contour
Who Should Buy
- Ranchers
- Custom Farming Operations
- Corporate Hay Producers
Download Literature
Warranty
Industry-leading toughness. Industry-leading warranty.Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.
Full Machine Warranty
Year
Specifications
| RDF12 | RDF14 | RDF16 | |
| Number of Rake Wheels | 12 | 14 | 16 |
| Size of Rake Wheels | 55'' or 60'' | 55'' or 60'' | 55:'' or 60'' |
| Tine Diameter | 55'' - 7MM 60'' - 7.5MM | 55'' - 7MM 60'' - 7.5MM | 55'' - 7MM 60'' - 7.5MM |
| Number of Tines Per Wheel | 40 | 40 | 40 |
| Manually Adjustable Windrow | 3' - 6' | 3' - 6' | 3' - 6' |
| Working Width | 25' | 28' 6'' | 30' 10'' |
| Operating Speed (MPH) | 5 - 14 | 5 - 14 | 5 - 14 |
| Horsepower Required (Min.) | 30 | 40 | 40 |
| Tire Size | 205/75/15 | 205/75/15 | 205/75/15 |
| Number of Tires | 4 | 6 | 6 |
| Transport Width | 8' 4'' | 8' 4'' | 8' 4'' |
| Transport Length | 24'8'' | 32'8'' | 32'8'' |
| Transport Height | 6'5'' | 6'5'' | 6'5'' |
| Light Kit and Tow Chain | Std | Std | Std |
