Ideal for heavy hay conditions

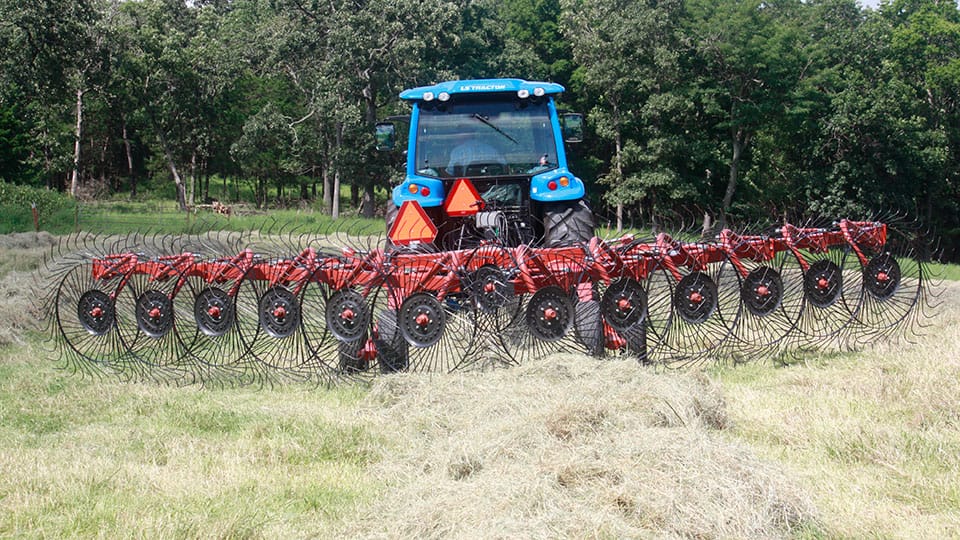

VRX Series High Capacity Hay Rake

Cab controlled, for easier use.

This feature rich V-Rake is available in 12 or 14 wheel configuration and will accommodate 55" or 60" rake wheels. Standard features include a walking tandem axle and cab mounted hydraulic actuator that allows windrow and raking width adjustments.

Features and Benefits

  • Cab-Controlled Hydraulic Adjustability
  • Walking Tandem Provides Exceptional Stability
  • Independent Spring Shock on Every Rake Arm
  • Narrow Transport Width of 9' 2
  • Hydraulic Transport Locks
  • 55 or 60-Inch Rake Wheels
  • Optional Center Wheel Kit
  • Clean Material Pick-Up
  • Actuator Selector Allows for Quick Adjustments to Working Width and Windrow Width from Tractor Seat

Who Should Buy

  • Heavy Hay Conditions
  • Changing Conditions

Download Literature


Industry-leading toughness. Industry-leading warranty.

Rhino products are built to take on whatever you can throw at them. But if something should break, you’ll be glad to know our warranties are just as strong. See your local Rhino dealer for complete details.

Full Machine Warranty




Number of Rake Wheels1214
Adjustavle Windrow Width (Min)3'3'
Adjustable Windrow Width (Max)6' 7''6' 7''
Tire Size205 - 75/15205 - 75/15
Min Working Width22'24' 11''
Transport Width9' 2''9' 2''
Min HP Required5060
Weight (Approx)2,6702,955
